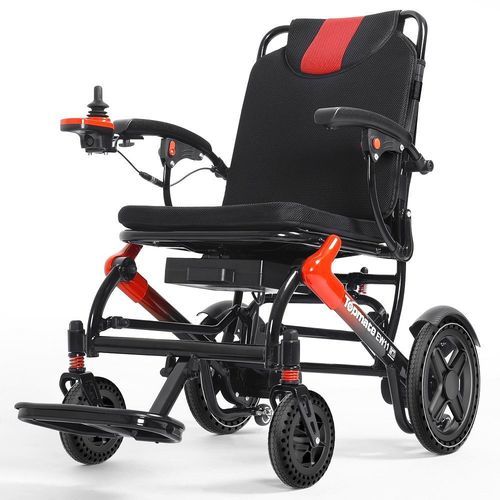

Electric wheelchair EW11indooroutdoorfolding
Add to favorites
Compare this product
Characteristics
- Propulsion
- electric
- Applications
- indoor, outdoor
- Options
- folding
- Main color
- red
- Tare weight (kg)
18.2 kg
(40.1 lb)- Max supported weight (kg)
100 kg
(220.5 lb)- Max speed (km/h)
6.4 km/h
(4 mph)
Description
Overview
TopMate EW11 is a compact electric wheelchair designed for safe, travel-ready mobility. The wheelchair features an electromagnetic automatic braking system that engages when the joystick is released, a four-way shock absorption layout and a six-wheel configuration (11" rear wheels + 7" front wheels + two anti-tip wheels) to improve stability and ride quality across varied surfaces. A safety belt is included for added restraint during transit.
One-Step Folding and Easy Travel
This foldable power wheelchair combines a lightweight construction with a secure one-step folding mechanism. At 40.1 lbs (≈18.2 kg) and a maximum user weight of 220.4 lbs (≈100 kg), EW11 is sized for convenient transport and trunk storage, making it suitable for outpatient travel and facility transfers.
400W Motors for Powerful Performance
The drive system uses dual brushless 24V 200W motors (total 400W) with 17.5 Nm torque, enabling reliable traction and an ability to climb inclines up to 12°. Forward speed is adjustable from 0–4 mph (0–6.4 km/h) to match clinical and everyday use scenarios.
Detachable Battery with Long-Lasting Range
The EW11 uses a removable 24V 12.5Ah lithium battery providing up to 11 miles (≈17.7 km) per charge. The included 2A charger achieves a full charge in approximately 6.5 hours. Battery charging can be performed either on-board or by removing the battery for separate charging.
360° Directional Control Joystick & Warranty
The joystick provides 360° directional control and can be mounted on the left or right side based on user or clinical preference. Controls integrate the power switch, horn, speed adjustment and clear battery/speed indicators to support precise maneuvering in tight spaces. The product is supplied with a 2-year warranty.
Specifications / Technical details
TopMate EW11 is a compact electric wheelchair designed for safe, travel-ready mobility. The wheelchair features an electromagnetic automatic braking system that engages when the joystick is released, a four-way shock absorption layout and a six-wheel configuration (11" rear wheels + 7" front wheels + two anti-tip wheels) to improve stability and ride quality across varied surfaces. A safety belt is included for added restraint during transit.
One-Step Folding and Easy Travel
This foldable power wheelchair combines a lightweight construction with a secure one-step folding mechanism. At 40.1 lbs (≈18.2 kg) and a maximum user weight of 220.4 lbs (≈100 kg), EW11 is sized for convenient transport and trunk storage, making it suitable for outpatient travel and facility transfers.
400W Motors for Powerful Performance
The drive system uses dual brushless 24V 200W motors (total 400W) with 17.5 Nm torque, enabling reliable traction and an ability to climb inclines up to 12°. Forward speed is adjustable from 0–4 mph (0–6.4 km/h) to match clinical and everyday use scenarios.
Detachable Battery with Long-Lasting Range
The EW11 uses a removable 24V 12.5Ah lithium battery providing up to 11 miles (≈17.7 km) per charge. The included 2A charger achieves a full charge in approximately 6.5 hours. Battery charging can be performed either on-board or by removing the battery for separate charging.
360° Directional Control Joystick & Warranty
The joystick provides 360° directional control and can be mounted on the left or right side based on user or clinical preference. Controls integrate the power switch, horn, speed adjustment and clear battery/speed indicators to support precise maneuvering in tight spaces. The product is supplied with a 2-year warranty.
Specifications / Technical details
- Brand: TopMate
- Model / SKU: EW11
- Type: Electric wheelchair / power wheelchair
- Braking system: Electromagnetic automatic brake (engages when joystick released)
- Suspension: Four-way shock absorption
- Wheel configuration: Six-wheel design (11" rear wheels + 7" front wheels + 2 anti-tip wheels)
- Safety: Safety belt included
- Folding: One-step folding design for compact storage and travel
- Weight (product): 40.1 lbs (≈18.2 kg)
- Maximum user weight (load capacity): 220.4 lbs (≈100 kg)
- Motors: 24V 200W × 2 brushless motors
- Motor torque: 17.5 Nm
- Maximum climbable incline: Up to 12°
- Speed: Adjustable 0–4 mph (0–6.4 km/h)
- Battery: 24V 12.5Ah removable lithium battery
- Range: Up to 11 miles (≈17.7 km) per charge
- Charger: 2A charger; full charge in ~6.5 hours
- Charging options: Battery can be charged separately or while installed
- Joystick: 360° directional control; mountable left or right; includes power switch, horn, speed adjustment and battery/speed indicators
- Warranty: 2-year warranty
