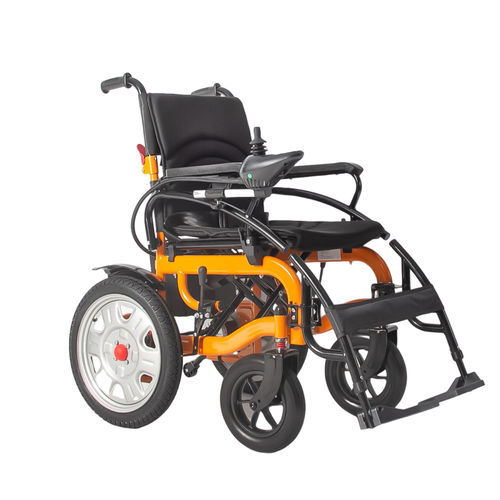

Electric wheelchair YK-5015outdoorfolding
Add to favorites
Compare this product
Characteristics
- Propulsion
- electric
- Applications
- outdoor
- Options
- folding
- Total height (cm)
95 cm
(37.4 in)- Total length (cm)
106 cm
(41.7 in)- Total width (cm)
63 cm
(24.8 in)- Tare weight (kg)
44.3 kg
(97.7 lb)- Max supported weight (kg)
150 kg
(330.7 lb)- Max speed (km/h)
6 km/h
(3.7 mph)
Description
Product overview
Dimensions
Wheels
Battery and performance
Technical specifications
Notes
- Model: YK-5015 power wheelchair
- Net weight: 97.6 lb / 44.26 kg (including 12Ah lead-acid battery)
- Maximum load: 330 lb / 150 kg
- Battery options: 24V — 12Ah or 20Ah lead-acid (12Ah = 8.5 kg / 18.7 lb; 20Ah = 13 kg / 28.7 lb)
- Motor: 24V 250W × 2
- Driving distance (range): 15–25 km
- Climbing capacity: ≤ 13°
- Max forward speed: 6 km/h
Dimensions
- Overall dimension: 41.7" × 24.8" × 37.4" (106 × 63 × 95 cm)
- Folding size: 31.1" × 15.7" × 28.3" (79 × 40 × 72 cm)
- Seat size: 16.5" × 17.7" (42 × 45 cm)
- Package size: 29.9" × 15.4" × 30.9" (76 × 39 × 78.5 cm)
Wheels
- Front wheel size: 10"
- Rear wheel size: 16"
Battery and performance
- Battery type: 24V lead-acid (12/20Ah options)
- 12Ah battery weight: 8.5 kg / 18.7 lb
- 20Ah battery weight: 13 kg / 28.7 lb
- Dual 250W motors for propulsion
- Range depends on battery capacity, load and driving conditions (15–25 km)
Technical specifications
- Model: YK-5015
- Net weight (with 12Ah): 44.26 kg
- Maximum load: 150 kg
- Motor: 24V 250W × 2
- Battery: 24V, 12/20Ah lead-acid
- Max speed: 6 km/h
- Climbing capacity: ≤ 13°
Notes
- Specifications are provided as supplied and may vary with configuration and testing conditions.
