knife mill / laboratory / for the pharmaceutical industry / for the food industry
TT-FM-1000

{{requestButtons}}

Characteristics

  • Technology:

    knife

  • Applications:

    laboratory, for the pharmaceutical industry, for the food industry

Description

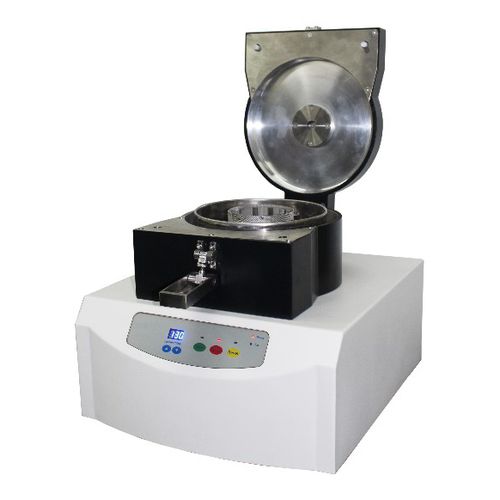

Fast Mill – TT-FM-1000 applies to a wide range of samples such as chemicals, drugs, seasoners, synthetic resin, coal, plastics, agentia raw materials, finished drugs, fertilizers, foods and so on. Based on its efficient grinding technology and diversified accessories, TT-FM-1000 can guarantee moderate sample preparation in instantaneous time. Fast Mill TT-FM-1000 can realize two-stage crushing for samples with the rotor and ring sieves.

Product Application

Application Field: Dry grinding, fine grinding, cryogenic grinding

Sample: soft, medium-hard, brittle, fibrous sample

Application Sample: Agriculture, Environment, Soil, RoHS, Chemical, Plastic, Medicine, Animal Food, Grain, Dry plant and so on.

Working Principle

From the feed entry, samples are pretreated through primary crushing of rotating knife and then move outward between rotating knife and ring grizzle under the action of centrifugal force. They will go through secondary crushing by squeezing, cutting and friction. If sizes of samplers are smaller than the diameter of the ring grizzle, they will enter the collection device, through the secondary grinding of rotating knife and ring grizzle system it ensures the instrument to carry out the mild and efficient sample preparation in a very short time.

Features

Final sample size is less than 100μm
low noise, reliable operation, easy to clean
touch control panel, convenient and quick
Dual-stage type rotor screen system to complete mild and fast crushing
