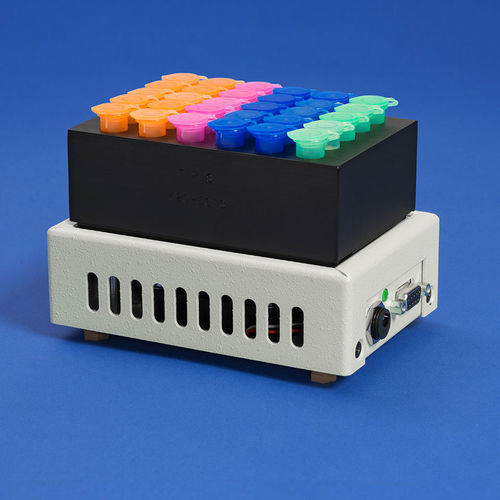

Heating dry bath EchoTherm™

compactfor tubes

Compact design for single or multiple unit remote operation for robotic systems or on the bench using the MIC20 Remote Controller or a PC serial port and the RS232 I/O port on the unit. Description The EchoTherm™ RHB20 Series was designed for use in robotic systems. As such, it is a small, self contained unit that runs off 12 volts DC. Power is provided from a universal bench top power supply that takes 100VAC to 260VAC, 50/60Hz inputs and converts that to 12 volts DC for the RHB20 series. The unit comes with an RS232 cable for connecting it to a PC via any open serial port. The Serial Command Set is provided with the unit. It gives the user the information needed to control the RHB20. Any number of units can be connected to a PC using any of the available serial ports on the computer. After the RHB20 has been instructed to go to a temperature, the unit can be disconnected from the computer and the computer can be used to instruct another RHB20 using the same serial port on the computer. The unit will retain its instructions when disconnected from the computer until told otherwise. As the unit heats toward its target temperature, the LED on the unit will flash. When the flashing stops and the LED is constantly lit, the unit is stable at the target temperature. If the user opts to run a complex temperature/time profile, the RHB20 can be instructed, via a computer and software generated by the user, to run the profile. In this case, the RHB20 unit will have to remain connected to the computer. The RHB20 uses all the standard sample blocks listed below on the heating surface.
