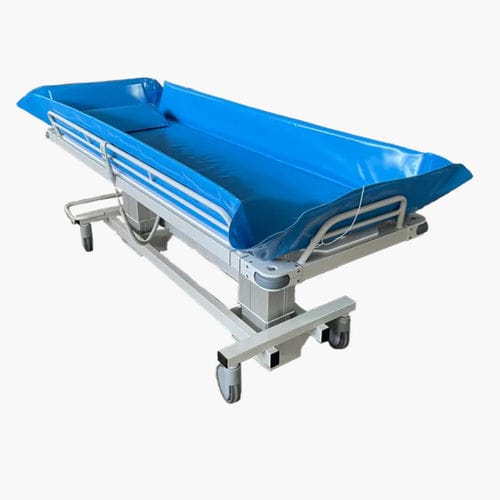

Height-adjustable shower trolley TR 4200

electricbattery-poweredbariatric

Overview
TR 4200 is a battery-powered bariatric shower trolley designed for heavier patients. Atlas Jr. provides additional space and strength to meet demands in clinical and long-term care settings.

Uses

• Showering
• Changing trolley
• Treatment trolley

Key features

• Electric height adjustment
• Electric tilt in both directions
• Central locking castors with central brake and straight steering
• Hand control
• Bumper wheels
• 150 mm castors
• Soft flame-retardant mattress and cushion (removable mattress option)
• Drain at foot end with flexible drain hose (standard L = 1 m; optional long drain hose 2.5 m)
• Chassis and lying surface frame made of powder-coated stainless steel
• Proven battery solution; available with fixed or removable battery options
• Delivered ready for use with MagCode battery charger, mattress, head pillow and 1 m flexible drainage hose
• Complete shower trolley compliant with IPX5

Capacity and build
Maximum load capacity / patient weight: 270 kg / 600 lbs. Constructed with high-quality components for long service life and reduced total cost of ownership.

For caregivers

• Safe patient handling
• Height adjustable
• Tilting function
• Removable mattress
• Central brake and straight steering
• Foldable side rails
• Transfer and transport
• Compatible with TR2810 Shower Panel
• Easy-to-use MagCode charger

Options and accessories

• Head cushion colour options
• Wedge cushion
• Available with blue mattress instead of standard grey
• Straps for securing the mattress to the side rails
• Long drain hose 2.5 m (option)

Models
TR 4200 (Atlas Jr.) is delivered ready for use with MagCode charger, mattress, head pillow and 1 m flexible drainage hose. Available with fixed or removable battery options.

Specifications

• Maximum patient weight: 270 kg / 600 lbs
• Protection rating: IPX5 (complete trolley)
• Height adjustment: Electric
• Tilt: Electric, both directions
• Castors: 150 mm, central locking / central brake and straight steering
• Chassis & frame: Powder-coated stainless steel (chassis and lying surface frame)
• Mattress: Soft flame-retardant mattress and cushion; removable mattress option; colour option (blue instead of standard grey)
• Drain: Drain at foot end; standard flexible drain hose L = 1 m; optional long drain hose 2.5 m
• Battery: Proven battery solution; models available with fixed or removable batteries; MagCode charger included
• Accessories: Head cushion, wedge cushion, mattress straps for securing to side rails
