Artery vascular model FB007D

kidneysympathetic nervous systemrenal artery

Product Description

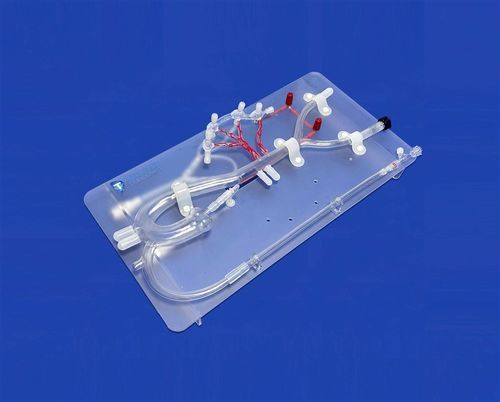

This Renal Artery Radiofrequency Ablation (RDN) training model (model FB007D) is 3D printed at 1:1 scale from anonymized human CT/MRI data. The transparent main body provides visual access to internal anatomy and supports two vascular access routes: femoral and radial. The renal arterial system includes the main renal trunk with branches and accessory renal arteries, with internal diameter variations to replicate realistic anatomy. Main and accessory renal arteries are independent, replaceable silicone modules and include simulated sympathetic nerves colored red for visual feedback.

Dimensional Drawing / Visual Indicators

• Scale: 1:1 based on anonymized human CT/MRI data.
• Thermochromic indicator: the red-simulated sympathetic nerve fades toward colorless when an RF device raises local temperature above ~45°C; color returns on cooling. Thermochromic behavior is reversible below 80°C.
• Includes dimensional illustrations and product diagrams labeled with model FB007D for orientation and planning.

Product Features

• Visual nerve indicator (red) provides immediate visual feedback of temperature-related nerve change during RF ablation simulation.
• Silicone arterial modules replicate vessel compliance and are replaceable to enable repeated procedures and component replacement.
• Transparent 3D-printed body offers clear visualization for training, device positioning and fluoroscopy correlation.
• Model can simulate impedance changes during renal artery ablation to support procedural assessment and planning.

Product Application

• Hands-on simulation and training for renal denervation / renal artery RF ablation procedures.
• R&D, testing and validation of RF ablation devices and catheters.
• Device demonstrations at conferences, clinical training sessions and evaluation centers.

Order / Shipping Information

• Model: FB007D
• Payment: T/T
• Shipping time: 7 days
• Lead time: 7–15 days
• Shipping methods: FedEx, DHL, EMS, UPS, TNT

Technical Specifications

• Model code: FB007D
• Manufacturing method: 3D printed from anonymized CT/MRI data
• Scale: 1:1
• Materials: transparent body, silicone main and accessory renal arteries
• Access routes: femoral and radial
• Artery design: main trunk with branches and accessory renal arteries; internal diameter variations
• Modules: main and accessory renal arteries are independent, replaceable modules
• Simulated sympathetic nerves: colored red; thermochromic behavior (fades above ~45°C; reversible below 80°C)
• Functionality: simulates impedance during ablation procedures
• Use cases: surgical training, device R&D, testing, demonstrations
• Durability: designed for repeated manipulation and training use
