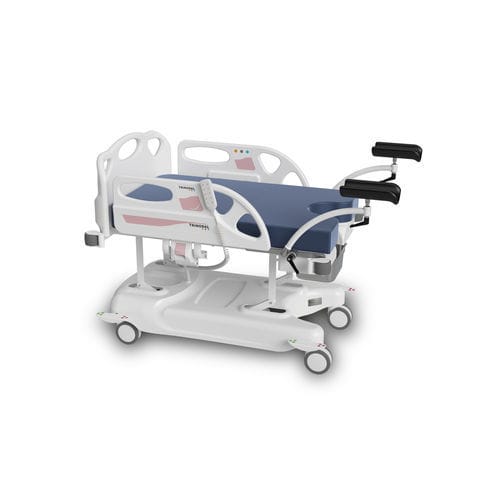

Gynecological examination table DD 3040

adultelectricheight-adjustable

OVERVIEW
DD 3040 delivery bed is suitable for gynecologic examination and birthing. 3 motorized fully function hand control unit give chance to adjust all positions. Foot part is designed as easily detachable. With its gynecologic leg support and chrome nickel coated accessories, DD 3040 is both; gynecologic examination table & delivery bed.


SPECIFICATIONS

• Backrest, Height Adjustment, Trendelenburg and Reverse Trendelenburg Movements by Motors
• Fully Function Hand Control Unit
• Metal Mattress Platform
• Epoxy Powder Coated Main Construction
• Easily Detachable Foot Part
• Lockable and Removable Head and Foot Boards
• Back Rest Angle: 75°
• Trendelenburg & Reverse Trendelenburg: ± 20 °
• Side Rails with Angle Indicators
• Both Sided Drainage Hooks
• Resistible Crash Bumpers in Each Corner
• Stainless Steel Waste Container
• Adjustable Leg Support
• 150 mm dia. Central Lockable Castors
• I.V. Pole Holes at 4 Corner
• Height Adjustable Chrome Nickel Coated I.V. Pole

TECHNICAL DIMENSIONS

• External Dimensions: 1050 × 1980 mm
• Height Adjustment: from 620 to 900 mm
• Lying Surface: 850 × 1900 mm
• Mattress: 12 cm
• Removable Part: 850 x 570mm
• Max. Load Capacity: 200 kg
• Electrical Consumption is 240 V, 50-60 HZ

OPTIONAL PARTS

• X-Ray Cassette Holder Under Back Section
• Battery Back-up
• Manual CPR
• Trapeze Bar for Patient Lift
• Stainless Steel Accessories
• Strong Grab Handle
