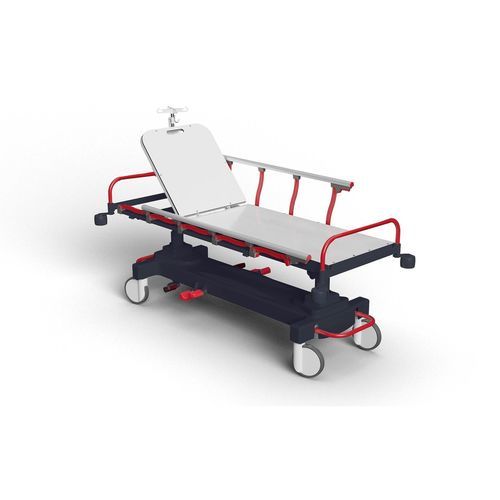

Transport stretcher DS 1032

emergencyon castersreverse Trendelenburg

Overview
DS 1032 is a hydraulic height-adjustable patient stretcher designed for emergency and intra-hospital transport. Height is operated by pedals on both sides (600–930 mm). The stretcher provides backrest adjustment up to 85°, Trendelenburg and reverse Trendelenburg positions, patented higher Z‑shape collapsible side rails for enhanced patient protection, ergonomic head and foot push-handles and bumpers to protect walls during manoeuvring.

Specifications

• Trendelenburg: 12°
• Reverse Trendelenburg: 14°
• Backrest adjustment: up to 85°
• Hydraulic height adjustment operated by two-sided foot pedals (600–930 mm)
• HDPL anti-bacterial mattress platform
• 28D high-density foam mattress, PU covered, mattress height: 80 mm
• Epoxy powder coated main construction; lower part fully ABS covered
• Patented Z-shape collapsible side rails (higher than standard)
• Two-sided hydraulic foot control
• Two-sided stable push handles
• Chromed IV pole and urine bag holders on both sides

Technical Dimensions

• Outer dimensions: Width 850 mm × Length 2150 mm
• Bed surface: Width 600 mm × Length 1900 mm
• Height: Min. 600 mm — Max. 930 mm
• Standard weight capacity: 210 kg
• 150 mm central lockable castors (one directional)

Optional Parts

• Foldable push handles
• X‑ray cassette holder
• 200 mm central lockable castors
• Stainless steel push handles
• Stainless steel adjustable IV pole
• Oxygen cylinder holder belt
• Patient restraint belt
• 5th castor

Materials & Hygiene

• Epoxy powder coating for corrosion resistance
• Anti-bacterial HDPL mattress platform and PU-covered foam for infection control
• ABS lower covers for easy cleaning and impact protection
