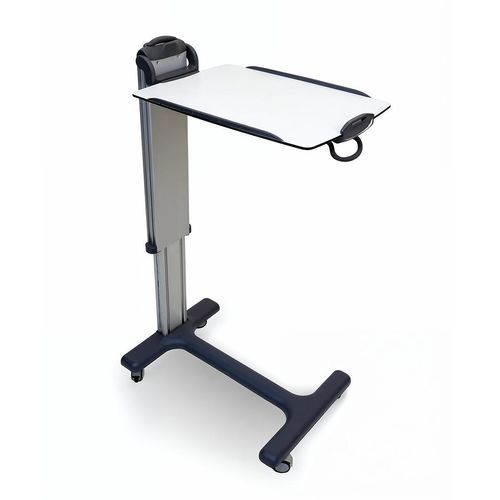

Height-adjustable overbed table DW 1052

tiltingon castorspneumatic

Overview
The TRINODAL DW 1052 tilting overbed table is developed for hospitals, clinics and medical facilities requiring flexible positioning, easy hygiene and patient comfort.

Product details

• Foldable compact HPL (high pressure laminate) tabletop to save space when stored.
• 360° rotating and tilting tabletop for eating, reading, working and other patient activities.
• Integrated protective plastic barrier rails on the tabletop to reduce the risk of items slipping when tilted.
• Fully aluminum body structure for durability and lightweight maneuverability.
• ABS-covered lower base for easy cleaning and hygienic maintenance in clinical environments.
• Pneumatic height adjustment for smooth positioning across different bed heights (Min. 690 mm, Max. 1040 mm).
• Ø50 mm twin swivel castors, including two lockable castors, for controlled mobility and stable positioning.

Design and use
The folding tabletop and compact footprint optimize room space while providing practical functions and adjustable patient support for clinical care.

Specifications

• Anodized aluminum frame
• Fully aluminum body structure
• Pneumatic height adjustment (Min. 690 mm, Max. 1040 mm)
• Foldable HPL tabletop; compact laminate HPL tabletop
• Ideal HPL dining board (inner dim.): Width 430 mm, Length 532 mm
• 360° rotating and tilting tabletop
• Protective plastic barrier rails integrated on the tabletop to prevent item slipping
• ABS covered lower base for easy cleaning and hygiene
• Ø50 mm twin swivel / dual castors (including two lockable castors) for mobility and stability
• Optional parts: Ø75 mm twin castors
