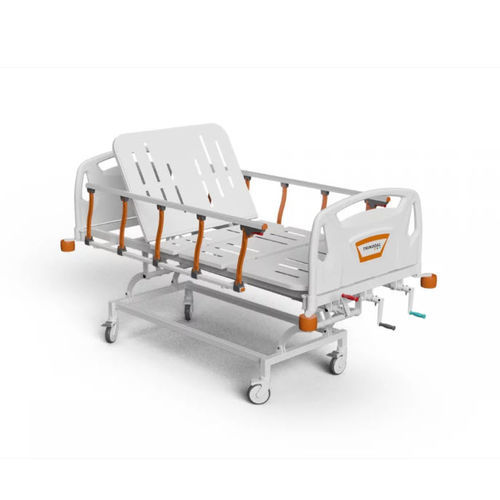

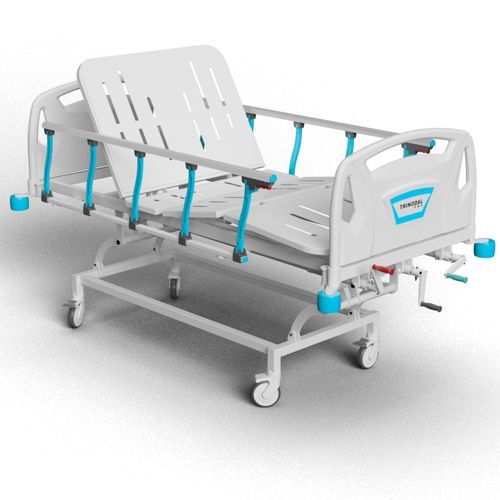

Hospital bed DM 3000

manualheight-adjustablereclining

The TRINODAL DM3000 Height Adjustable Fowler Bed is developed for hospitals, clinics and healthcare facilities requiring durable, practical and ergonomic patient care solutions.

The bed features manual backrest, kneerest and height adjustment functions, allowing flexible patient positioning during examination, treatment, recovery and hospitalization. The pneumatic-assisted height adjustment system helps reduce caregiver effort while providing smoother movement during operation under patient load.

Manufactured with an epoxy powder coated steel frame, aluminum top foldable side rails and HDPP head & foot boards, the DM3000 offers durability, patient safety and easy cleaning for intensive daily healthcare use.

The bed is equipped with a 4-section mattress platform, Ø125 mm cross lockable castors and ergonomic manual crank systems designed for practical operation and safe patient care. Optional configurations including ABS mattress platform, HPL backrest section, IV pole and trapeze bar provide additional flexibility for different healthcare applications.

SPECIFICATIONS

• Height Adjustment Manual Bed
• 70° Backrest Adjustment
• 45° Kneerest Adjustment
• Manual Crank with Pneumatic Assistance Height Adjustment
• 4 Section Metal Bed Surface
• Aluminum Top Foldable Side Rails
• HDPP Head & Foot Boards
• Epoxy Powder Coated Main Frame
• Four Corner Bumpers
• Cross Lockable Castors (125Ø mm)

TECHNICAL DIMENSIONS

• Bed Surface: 900 x 1900 mm
• Height (Up to Mattress Platform): Min. 460 mm, Max. 800 mm
• External Dimension: 1080 x 2145 mm
• Standard Weight Capacity: 210 kg
• Cross Lockable Castors: Ø125 mm

OPTIONAL PARTS

• ABS Mattress Platform
• HPL Backrest Section
• Painted IV Pole
• Stainless Steel IV Pole
• Trapeze Bar for Patient Lift
• Semi-Automatic Rack System Foot Section Adjustment
• Urine Bag Holder
