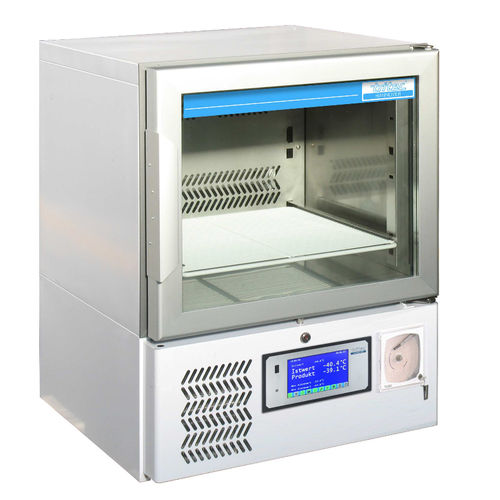

blood bank refrigerator / undercounter / with automatic defrost / stainless steel
TC 500-V



  • Applications:

    blood bank

  • Configuration:


  • Other characteristics:

    with automatic defrost, stainless steel, 1-door

  • Capacity:

    110 l (29.1 gal)

  • Temperature range:

    Max.: 8 °C (46.4 °F)

    Min.: 2 °C (35.6 °F)


The TC 500-V Blood Bank Air circulated Refrigerator provides an excellent air cooling system for rapid and uniform temperature control and in reducing temperature gradients to a minimum. Warmer ambient air are prevented from being drawn in when the door is open through a micro switch mechanism which automatically switches off the circulating fan. Proper insulation is provided through a 40 mm thick high density foamed-in-place polyurethane. It has a three-layer thermally insulating glass door the standard of which is with a right hand hinge but a door with a left hand hinge is also available at no extra cost. The doors also have a grease resistant magnetic seal. Additional features includes an interior lighting with automatic ON/OFF micro switch, 2 pcs. stainless-steel drawer compartments with 2 lengthwise dividers, and a telescopic-type guides on rollers with stops.
