B = 1380 mm
D = 920 mm
H = 1032 mm
B = 716 mm
D = 630 mm
H = 760 mm

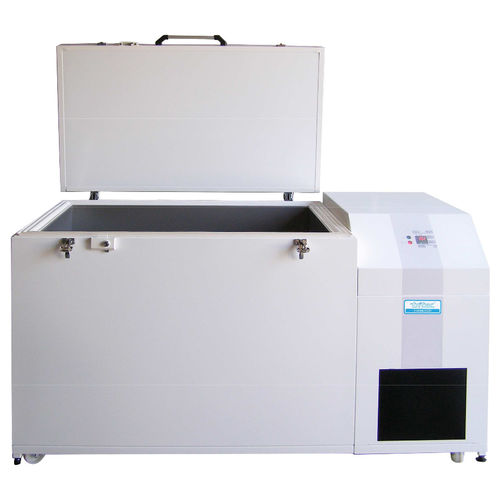

Capacity: 340 l
Temperature Range:-60°C to -86°C
Galvanized sheet steel with high quality white coating. Equipped with 4 swivelling castors and 2 levelling adjusters.
of stainless steel. Cleaning friendly by rounded corners, slippery surface in the interior, meets highest hygiene requirements
More effective insulation with vacuum insulation panels, Thermal conductivity < 0,005 W/m/K. The operating time of the compressors is reduced and your electricity consumption is cut by 15 %
The lid is fitted with a locking handle and spring latches compensating hinges and a hydraulic lift ensure that the lid stays open for loading and unloading. To reduce the ice build up around the lid, hot gas counter heating and a PVC bridging joined are fitted.
2 PVCcovers rest on the bridging joint and further reduce thermal loss
Optional: Upright stainless steel frame
(B:144xD:140xH:737) mm (max.20 frames possible)
Number of cryo boxes per rack Dimension cryo boxes
12 St. 133x133x51 mm
7 St. 133x133x95 mm
High quality electronic temperature regulator
Digital selected- and actual value display, permanently readable.
Selected value can be adjusted by foil coated button
Temperature Range: -60°C to -86°C
Temperature accuracy at -80°C +/- 3°C after stabilising
