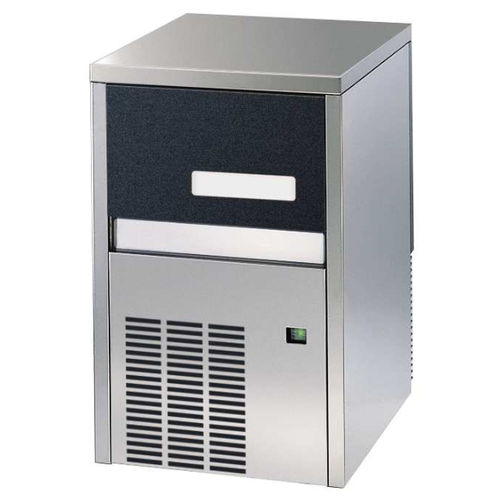

Cube laboratory ice maker TC 406

cube laboratory ice maker
cube laboratory ice maker
Add to favorites
Compare this product


Characteristics

Type of ice
cube

Description

External Dimension: B = 390 mm D = 460 mm H = 690 mm Storage capacity: 9 kg Maximum capacity: 28 kg/24h Housing high-grade stainless steel, CNS quality, incl. covering plate, with rounded front side. Rear side galvanized sheet steel. Access through high-quality insulated top panel, of silver grey plastic, retractable upwards, with 4 feet adjustable. Ice storage container made of plastic (ABS-quality). Easy to clean and hygienic thanks to rounded corners, with smooth, easily accessible surfaces. Cooling unit bottom mounted, with the condensing unit compounded by Nr 1 hermetic compressor and Nr 1 finned condenser, air cooled through a fan. Also, the motor compartment, incorporates the special evaporator with the shape of the cubes that once formed, automatically release them into the storage bin. All the mounted components are industrial grade to grant the maximum reliability Function: Automatic replenishment of the stock, depending on needs. If required, the cooling aggregate is activated by means of sensor technology (contact less), and automatically de-activated when the storage container is full. High energy saving, short running time = high economic efficiency. Microprocessors of the newest generation are integrated in switching and control circuits of all important operating functions, guaranteeing safety of the operator and the machine.

Catalogs

TC 406
TC 406
2 Pages
