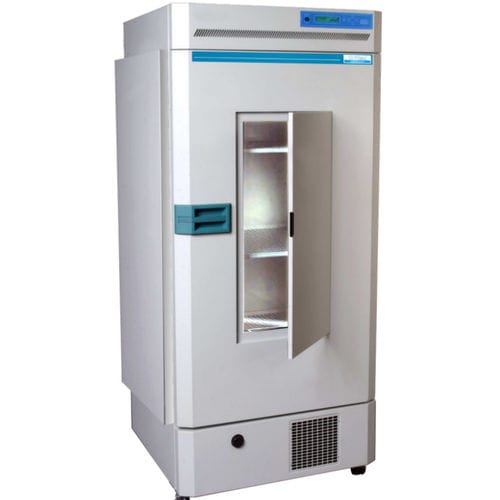

Climatic test cell KB 9400 F-LL

humiditytemperaturelighting

galvanised steel sheet, epoxy-resin-coated, RAL. 7035. Unit on four castors, lockable. Interior space Made of high grade stainless steel. Cleaning friendly by rounded corners, slippery surface in the interior, meets highest hygiene requirements The thermo-jacket circulation system ensures even temperature and humidity distribution in the chamber and prevents drying of the samples. The air flow is outside the work space. The circulation fan stops about 40 seconds after opening the door, though who the internal temperature is near the outside temperature. Simply removing the inner casing for intensive cleaning. Door Double-walled insulation door, hinged on the right-hand side. Magnetic, all-round sealing strip, resistant to laboratory cleaning agents. Optional:Inspection window in the front door, triple glazed with cover Dim: W: 32 cm, H: 77 cm – see photo with door lock Interior fittings Standard: 3 pcs. perforated stainless steel shelves (max. 22 pcs.) Max. load per shelf: 30 kg in case of constant distribution – total load: 120 kg Shelf dimension: W = 610 mm, D = 580 mm Control and instrument panel, located above the door incl. temperature controller with digital indication Microprocessor PID-controller touchscreen display. Time values can be given in minutes from 1 to 999 Humidification by ultrasonic humidifier. Humidity conditioning outside the usable space Humidity operating range from 30% r.H. to 96% r.H. (45°C) at a working temperature of 4°C to 55°C Humidity accuracy: temporal: +/-2°C, spatial: +/-2°C Water quality: Demineralised water, max. water pressure: 4 bar. Inlet and outlet at the rear of the unit.
