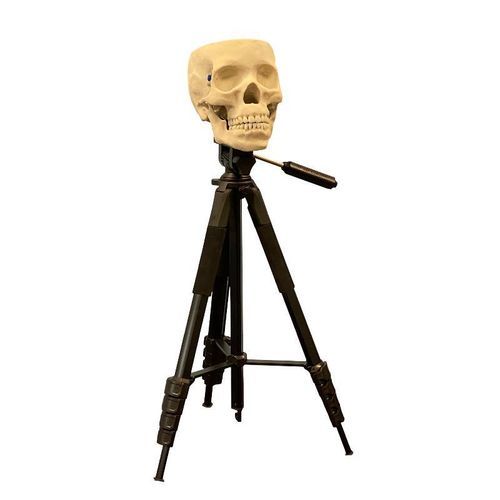

Dental radiography test phantom HD-D01

skulljaw

Overview
The Adult Dental Skull Phantom HD-D01 by True Phantom Solutions is a representational training tool for dental X-ray imaging. Designed for orthopantomogram (OPG) and periapical radiography training, it supports reproducible positioning and realistic radiographic contrast for enamel, dentine and root morphology. Supplied with a tripod for repeatable mounting.

Features

• Realistic skull base with anatomical detail
• Set of 32 teeth with distinct enamel and dentine layers and variable radiographic opacity
• Openable jaw to facilitate intraoral and extraoral X-ray procedures
• Embedded pathologies: one molar with fracture, one central incisor with cavity
• Visible root morphology and dentin structure for endodontic and periapical training
• Tripod included for secure, repeatable positioning

Included in Order

• Dental Skull Phantom (HD-D01)
• Tripod
• User manual and assembly instructions
• 2-year warranty and unlimited customer support
• Hard carry case

Technical Properties (selected)
Cortical Bone — Sound velocity: 3000 ± 30 m/s | Density: 2.31 g/cm³ | Attenuation at 2.25 MHz: 6.4 ± 0.3 dB/cm
Trabecular Bone — Sound velocity: 2800 ± 50 m/s | Density: 2.03 g/cm³ | Attenuation at 2.25 MHz: 21 ± 2 dB/cm

Thermal Properties of Bone-Mimicking Tissue
Thermal conductivity: 0.776 W/m·K
Volumetric specific heat capacity: 1.040 MJ/m³·K
Thermal diffusivity: 0.746 mm²/s
Thermal resistivity: 1.289 m·K/W
Specific heat: 0.978 J/g·°C
Speed of sound (material): 3070 m/s

HU Values of the Tissue-Mimicking Materials
Trabecular bone — HU (average): 800
Cortical bone — HU (average): 1300

Size & Weight

• Phantom size: 6 x 8 x 9 inches (≈ 15.2 x 20.3 x 22.9 cm)
• Phantom weight: approx. 4 lbs (≈ 1.81 kg)
• Shipment package size: 16 x 12 x 10 inches (≈ 40.6 x 30.5 x 25.4 cm)
• Shipment weight: approx. 15 lbs (≈ 6.80 kg)

Materials Used

• Synthetic bones: patented ceramic-reinforced epoxy-based composite material

Imaging Applications
Intended for OPG (orthopantomogram) and intraoral/periapical radiography training. Demonstrates crowns, enamel, dentine, root morphology and root canal structures for radiographic assessment and procedural training.

Specifications

• SKU: HD-D01
• Commercial name: Adult Dental Skull
• Brand: True Phantom Solutions
• Suitable for: OPG and intraoral/periapical radiographic training
• Teeth: 32 teeth with enamel and dentine, variable radiopacity
• Anatomical details: realistic skull base, openable jaw, visible root morphology
• Included accessories: tripod, hard carry case, user manual
• Warranty: 2 years
• Materials: ceramic-reinforced epoxy-based composite (synthetic bone)
