Ultrasound imaging test phantom US-G01

prostate

Overview

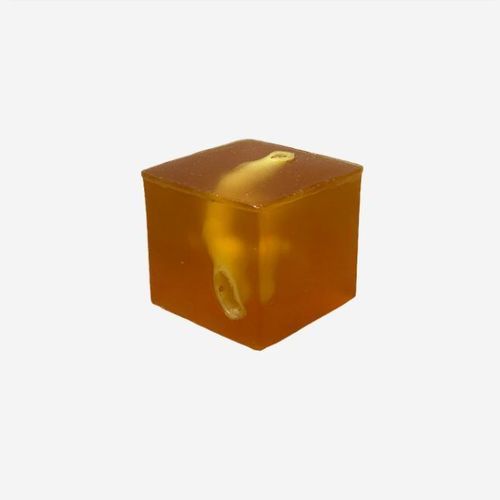

The Prostate Phantom is a compact transrectal ultrasound (TRUS) training phantom designed for realistic prostate imaging and hands-on procedural training. It uses urethane-based soft resin to mimic body tissue mechanical and acoustic properties and incorporates an embedded prostate and a hollow rectal cavity for probe insertion. Intended for TRUS scanning, biopsy simulation and needle-guided procedure practice in clinical training environments.

Anatomy

• Block of ultrasoft tissue: 10 x 10 x 10 cm
• Rectum: hollow rectal cavity for probe insertion
• Prostate: embedded target

Primary Uses

• Transrectal prostate scanning training (TRUS)
• Biopsy and needle-guided procedure simulation
• Hands-on ultrasound education and procedural skills practice

Technical Properties

• Organs with speckles (e.g., liver, kidneys): sound velocity 1435 ± 10 m/s; density 0.99 g/cm³; attenuation at 2.25 MHz 1.0 ± 0.2 dB/cm; hardness (Shore OO) 20; T2 70 ms; speckle: VARIABLE
• Organs without speckles (e.g., stomach, intestines): sound velocity 1400 ± 10 m/s; density 0.99 g/cm³; attenuation at 2.25 MHz 1.0 ± 0.2 dB/cm; hardness (Shore OO) 20; T2 70 ms; speckle: NO
• Body tissue: sound velocity 1410 ± 10 m/s; density 1.00 g/cm³; attenuation at 2.25 MHz 1.2 ± 0.2 dB/cm; hardness (Shore OO) 30; T2 65 ms; speckle: LOW

HU Values of the Tissue Mimicking-Materials

• 1 | Body Tissue — HU value (average): -25
• 2 | Prostate — HU value (average): 110
• 3 | Rectum — HU value (average): 100

Included in Order

• Prostate phantom
• User manual / assembly instructions
• 2-year warranty & unlimited customer service

Size & Weight

• Phantom size: 10 x 10 x 10 cm (approx.)
• Phantom weight: ~1 lb (approx.; ~0.45 kg)
• Shipment size: 30 x 25 x 25 cm (approx.)
• Shipment weight: ~3 lbs (approx.; ~1.36 kg)

Materials Used

• Soft tissue and organs: urethane-based soft resin composition

Notes

• Small variations in appearance may occur due to material properties and routine production tolerances.

Technical Specifications

• Brand: True Phantom Solutions
• Model: Transrectal Ultrasound (TRUS) Phantom
• SKU: US-G01
• Primary materials: urethane-based soft resin for soft tissue mimic
• Phantom dimensions: 10 x 10 x 10 cm
• Phantom weight: ~1 lb (approx.; ~0.45 kg)
• Shipment dimensions: ~30 x 25 x 25 cm; shipment weight: ~3 lbs (approx.; ~1.36 kg)
• HU values (average): Body Tissue -25; Prostate 110; Rectum 100
• Acoustic / mechanical properties (representative): see Technical Properties section for sound velocity, density, attenuation, hardness and speckle characteristics
• Includes: Prostate phantom, user manual/assembly instructions, 2-year warranty
• Intended use: TRUS imaging training, biopsy and needle-guided procedure practice
