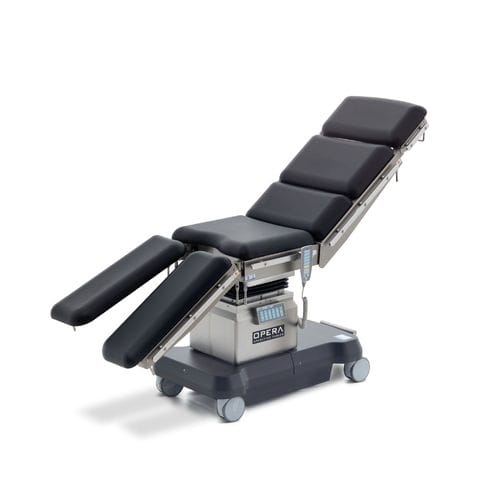

Universal operating table OP-2P
electricadjustable heightmobile

universal operating table
universal operating table
universal operating table
universal operating table
universal operating table
universal operating table
universal operating table
Add to favorites
Compare this product


Characteristics

Applications
universal
Operation
electric
Features
adjustable height, mobile, radiolucent, ergonomic, tilting, Trendelenburg, reverse Trendelenburg
Components
with legrest, with remote control, with slinding tabletop
Number of sections
6-section
Length

2,130 mm
(83.9 in)

Width

610 mm
(24 in)

Height

Max.: 1,200 mm
(47 in)

Min.: 800 mm
(31 in)

Maximum load

300 kg
(661.39 lb)

Mattress thickness

50 mm
(2 in)

Description

OP-2P operating table is a product designed to perform all kind of surgical operations. OP-2P operating table performs all its electromechanical movements with a wired handset and body control unit. GENERAL FEATURES For frequently used positions, it can store 5 different positions by using the memory feature and provide the opportunity to reach these positions quickly. Height adjustment, back position, trendelenburg, reverse trendelenburg, lateral tilt and horizontal sliding movements can be made with easy-to-use wired hand and body control. Through the elevator integrated on the table for kidney surgery, an angle of 300 degrees and a height of 12 cm can be reached, these figures provide the user with maximum surgical field visibility and operational success. Through the foot pedal located at the back of the operating table, the central brake system is easily activated and securely fixes the table. It increases user’s comfort during operation with its table height varying between 80 cm and 120 cm. The head and foot sections can be quickly positioned manually by the gas piston system. When desired, these sections can be easily removed and different accessories can be used according to the need. SPECIFICATIONS Sliding movement 300 mm Lateral Tilt movement +20° / -20° Backrest movement +90° / -40° Trendelenburg +25° Reverse Trendelenburg -25° Head section movement +35° / -60° Flex / Reflex position +220° / 90° Number of cushion pieces 6 pieces Wheel diameter 125 mm Number of wheels 4 pieces Renal surgery position +250° / 12 cm Table base structure I type Cushion material Compact / Polyurethane Remote control Wired hand
