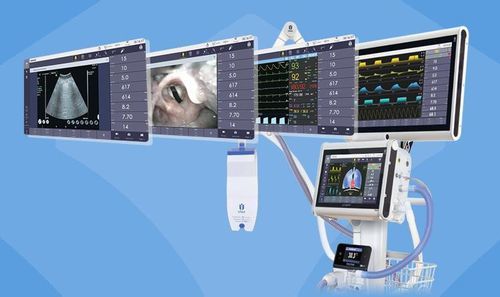

Intensive care ventilator UVENT-S

anesthesiafor critical caremedical

Overview
Modern lung ventilators should become multifunctional respiratory stations and have the possibility to integrate with other medical equipment right at the point of care. Such a solution can assist clinicians in prompt lung diagnostics, choosing individual tactics for therapy, and help in patients’ selection: to exclude an unreasonable start of invasive ventilation.

Key capabilities

• Transforms an ICU ventilator into a multifunctional respiratory critical care station (UVENT-S).
• Provides diagnostics during respiratory support and extended patient monitoring capabilities to support clinical decision-making.
• Integration-ready interface to connect external devices directly at the point of care.

Devices ready to connect

• Video laryngoscope
• Point-of-Care Ultrasound (POCUS) probe
• Patient monitor UM 300-S
• Additional 22" HD-display

Intubation Support Tool (IST)
IST in UVENT-S is designed to assist clinicians during intubation and includes:

• Tube positioning visual control on 22" HD‑screen with connected video laryngoscope.
• Built-in maneuver “Intubation support tool” with NIV preoxygenation mode and adaptive respiratory support.
• Apneic high-flow oxygenation during the intubation process.
• Continuous SpO2 and CO2 monitoring with built-in pulse oximeter and capnograph.

Lung ultrasound
Lung ultrasound capabilities support monitoring and diagnostics during ventilation:

• Immediate diagnostics with Extended Focused Assessment with Sonography in Trauma (eFAST) and lung status monitoring with POCUS probe.
• Diagnostic protocols supported include BLUE and FALLS for rapid assessment of complications in critical conditions.
• Clear visualization on 22" HD-screen.

Seamless surveillance / Remote monitoring (UniViewer)
Stay informed about patient status via tablet or smartphone in real time. UVENT-S remote patient monitoring displays waveforms, alarms and numeric data and enables remote consultation, reducing the need to be constantly at the bedside and lowering infection risk.

• Remote display of vital data, waveforms, alarms and numeric parameters.
• Supports remote consultation and reduces personnel exposure at bedside.

Patient monitoring during ventilation
UVENT-S can be combined with expert-class patient monitors (UM 300-S) to create one powerful unit offering expanded monitoring channels and specialized features for anesthesiology:

• Built-in breathing mechanics and gas exchange monitoring (including SpO2 and CO2).
• UM 300-S provides continuous monitoring with a wide range of channels.
• Key anesthesiology features: BIS™+EEG, Multigas (AAg+O2) and NMT, Automated Anesthesia Record, Drug Dose and Ventilation Calculators.

UniScreen™ extended visualization
Extended visualization technology displays patient information on two high-contrast color displays simultaneously; data layout customization allows optimal positioning and grouping of specialized data and control parameters.

• Shows different sets of information on two displays without duplicating content.
• Allows focused visualization and control on the main unit.

Remote service (Remote UVENT)
Remote UVENT enables remote diagnostics and maintenance via the Internet for timely support and efficient ventilator servicing:

• Remote device diagnostics.
• Remote adjustments and repair.
• Remote software updates.

Downloads / Documentation
Booklets and brochures are available for download in PDF format providing detailed information about the respiratory station concept, UVENT-S features, and the UVENT training simulator (PDF resources referenced on the page).

Additional notes
Some features may be not available in your country.

Specifications / Technical data

• Brand: UTAS (UTAS Technologies s.r.o.).
• Model / Series: UVENT-S.
• Product type: Respiratory critical care station (transformation of ICU ventilator into multifunctional respiratory station).
• Display: Support for 22" HD external display; dual-display (UniScreen™) visualization supported.
• Integrated monitoring: Built-in pulse oximeter and capnograph (continuous SpO2 and CO2 monitoring); breathing mechanics and gas exchange monitoring.
• Connectivity / integrations: Interfaces for video laryngoscope, POCUS probe, UM 300-S patient monitor, additional HD display; remote monitoring via UniViewer (waveforms, alarms, numeric data).
• Clinical tools: Intubation Support Tool with NIV preoxygenation, apneic high-flow oxygenation, and adaptive respiratory support.
• Anesthesiology options (when combined with UM 300-S): BIS™+EEG, Multigas (AAg+O2), NMT, Automated Anesthesia Record, Drug Dose and Ventilation Calculators.
• Service: Remote UVENT capabilities for diagnostics, adjustments/repair and software updates.
