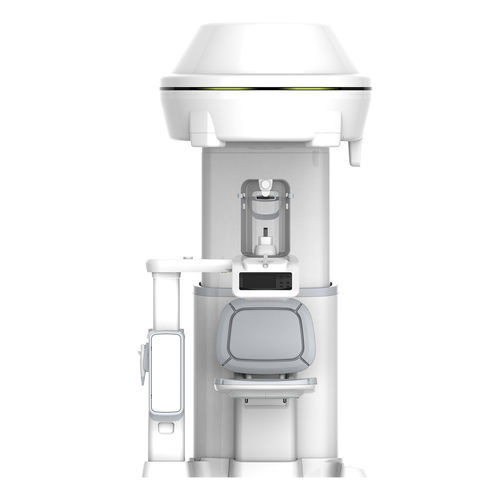

Digital dental CBCT scanner Green21

with cephalometric X-ray8x8 cm120 kV

Overview
VATECH Green21 is a multi‑modality CBCT scanner providing a comprehensive range of field‑of‑view (FOV) sizes from 21x19 cm down to 8x8 cm. The system supports integrated dental and ENT workflows with Auto Pano, Auto Ceph and optional 3D photo capture to expand diagnostic options and streamline clinical routines.

Highlights
Primary FOV: 21x19 cm

• Oral and maxillofacial surgery
• Facial reconstruction planning
• Orthodontic treatment planning
• Complex orthognathic cases

1 Scan 6 Images

• CBCT
• Auto Pano
• Auto Ceph [PA]
• Auto Ceph [Lateral]
• Auto Ceph [SMV]
• Auto Ceph [Waters' view]

CBCT
Dental CT modality with four selectable FOV sizes (8x8 to 21x19 cm) and voxel resolution from 0.12 mm. Selectable FOVs enable task‑oriented imaging to balance diagnostic detail and patient dose.

ENT diagnosis
ENT mode (Airway / TB&PNS) offers dedicated FOVs (including 17x11 cm) for common ENT indications such as cholesteatoma, chronic sinusitis and obstructive sleep apnea assessment.

Airway
[Airway] Airway volume analysis with automated tools:

• Simple airway selection: 2‑click region selection
• Automatic airway volume measurement with segmented volume and color‑coded thickness
• Automatically calculated total volume and minimum cross‑sectional area

Panoramic
High‑precision panoramic imaging with enhanced detail in the anterior region and dental roots to support diagnostic interpretation and treatment planning.

MAGIC PAN
Optional MAGIC PAN reconstructs a focused panoramic image by reducing distortion and blur from suboptimal patient positioning, improving clarity in incisor, canine, TMJ and root canal areas.

Technical specifications

• Function: CT [Auto Pano/Auto Ceph] + Pano + 3D Photo (Optional)
• CT - FOV Size (cm): Dental CT: 21 x 19, 17 x 15, 12 x 9, 8 x 8; ENT CT: 21 x 19, 17 x 11 [TB&PNS], 17 x 11 [Airway]
• Scan Time (sec): Pano: 13.5; CT: 18
• Voxel Size (mm): 0.12 ~ 0.4
• Sensor Type: CMOS
• Focal Spot: 0.5 mm
• Gray Scale: 14 bit
• Tube Voltage: 60 - 120 kV
• Current: 4 - 10 mA
• Patient Position: Seated / Wheel‑chair accessible
• Weight: 321 kg [708 lbs]
• Note: Specifications subject to change without prior notice.
