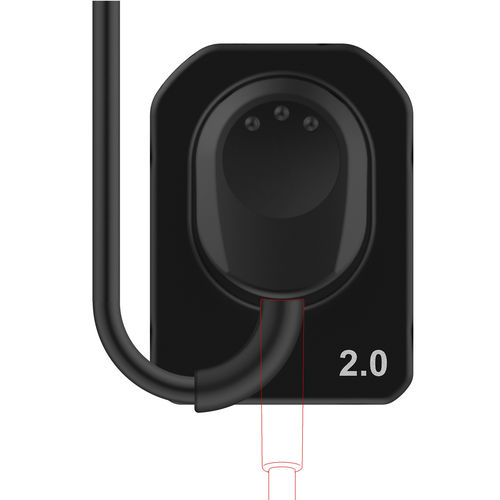

Dental radiography intra-oral detector EzSensor Classic ™

Ultra-Slim for Easy Positioning Patient Oriented Design. Trustworthy Image Detector CMOS Pixel Size 29.6 μm Theoretical Resolution 17 lp/mm Dynamic Range 12 bit Active Area(WxL) Size 1.0 _ 20 x 30 mm Size 1.5 _ 24 x 33 mm Size 2.0 _ 26 x 36 mm Dimensions(WxLxT) Size 1.0 _ 25.4 x 36.8mm (1.00 x 1.45 inch) Size 1.5 _ 29.2 x 39.5mm (1.14 x 1.55 inch) Size 2.0 _ 31.3 x 42.9mm (1.23 x 1.69 inch) Thickness 4.8 mm(0.19 inch) Cable Length 2.7 m 1. Ultra-Slim for Easy Positioning Slim, CMOS ensures that patients are as comfortable as possible. Placing and positioning a sensor in the patient’s mouth is still challenging. Over the years digital sensor technology has been improved to achieve patient comfort. VATECH R&D Center found out the thickness that minimizes pain from the test, and lead the technology maintaining the thickness while using CMOS chip. 2. Patient Oriented Design Rounded corner design allows maximum comfortable placement against soft tissue. Patients feel pain because delicate oral mucosa gets pressure from a hard sensor corner. Rounded corner can reduce that pain. But it has a possibility of reducing active image area. This is the technology that sustains the perfect balance between them. Ergonomically designed sensors in 3 different sizes meet the needs of various cases. The rounded & cut edges provide best possible comfort for the patients. The Vatech’s unique size 1.5 sensor fits almost all patients. 3. Trustworthy Image EzSensor Classic provides the image for accurate diagnosis and treatment planning.
