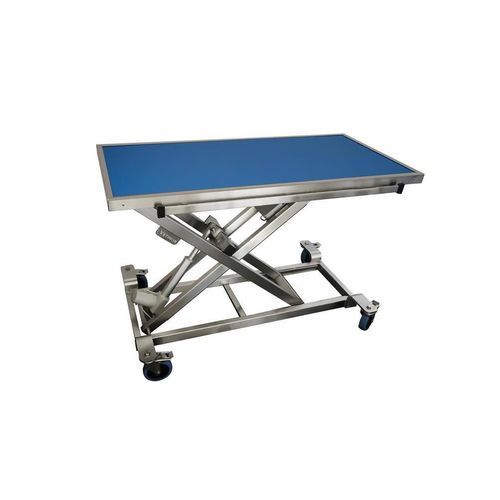

Height-adjustable veterinary X-ray table ELITE

Product overview
Versatile and innovative, the ELITE stretcher consulting table combines a stretcher, lift table, consultation table and a radiology tray in one unit. Designed for veterinary use, it features an integrated radiology plate, variable height for patient access and electric lifting capable of handling animals up to 100 kg. The chassis runs on four self-guiding castors for easy transport. Various options and made-to-measure configurations are available.

Features

• 4-in-1 function: stretcher table, lift table, consultation table, radiology table
• Table top: 1290 × 600 mm
• Overall dimensions lowered: 1290 × 600 × 225 mm
• Overall dimensions raised: 1290 × 600 × 965 mm
• Variable height: 225 mm to 965 mm
• Maximum load capacity: 100 kg
• Electric up/down control via push-button
• Quiet, jolt-free electric cylinder
• Built-in rechargeable 24 V stand-alone battery (long runtime)
• 16 mm blue machined polyethylene radiology plate, scratch-resistant
• 4 × 360° natural rubber castors with brake (anti-tracking)
• Cross mechanism for maximum stability
• Structure entirely in 304 L stainless steel
• Restraint bar on each side
• Stainless steel structure warranty: 5 years; electrical system warranty: 2 years

Documents & video
VIDEO demonstration of the stretcher table is available. Technical data sheet (PDF) is available for the ELITE stretcher consultation table.

Technical table
Dimensions: 130 × 60 × 98 cm
Table options: Folding wheels
Type of tray: Radiology tray

Technical specifications

• Reference: TA100410
• Series / Model: ELITE
• Function: stretcher table, lift table, consultation table, radiology table (4-in-1)
• Table top dimensions: 1290 × 600 mm
• Overall size lowered: 1290 × 600 × 225 mm
• Overall size raised: 1290 × 600 × 965 mm
• Height range: 225–965 mm
• Maximum load: 100 kg
• Drive / control: electric up/down control by push-button
• Actuator: quiet, jolt-free electric cylinder
• Battery: built-in rechargeable 24 V stand-alone battery (long runtime)
• Top material: 16 mm blue machined polyethylene, scratch-resistant
• Castors: 4 × 360° natural rubber castors with braking system (anti-tracking)
• Structure material: 304 L stainless steel
• Stability: cross mechanism
• Accessories: restraint bar each side
• Options: folding wheels, custom configurations available
• Warranty: 5 years on stainless steel structure; 2 years on electrical system
