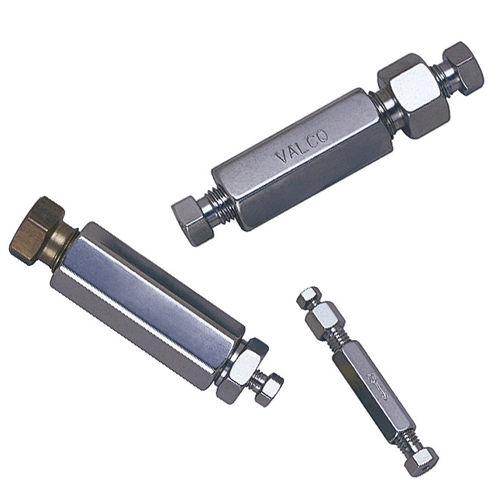

Gas filter ZUFR1CF

for chromatography

These filters come with a removable 2µ frit. The standard frit can be replaced with any frit of the proper diameter, but not by a screen. These filters are suitable for streams with frequent contamination, since the filtering element is easily changed. A removable frit also allows the subsitution of a Hastelloy C or titanium frit for the standard stainless one. Bulkhead versions are designed to be mounted through an instrument panel or on a bracket. The filter body is undercut so that it bites into the panel when the mounting nut is tightened, eliminating the need for a lock washer. Standard material is Type 316 stainless. Bulkhead versions and other sizes available on a special order basis.
