Medical trolley Eolis®

hospitalfor medicinetransport

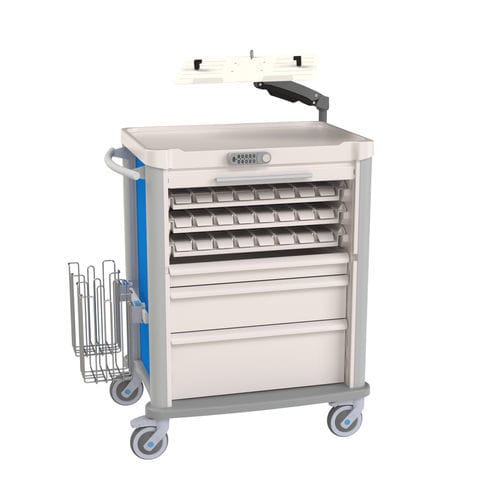

Medication trolley Eolis® designed for secure transport and distribution of medicines, built on a modular ISO 600x400 base and configured with a rolling shutter (equipped M04).

Standard equipment:

• Rolling shutter with centralized locking: code lock + key
• 3 trays 600x400 fitted with 24 pill organizers (format L. 1/8 x H. 1 module) with 4 dividers (no label holder)
• 3 flush-fitting drawers 600x400: 1 x 1 module (H 75 mm), 1 x 2 modules (H 150 mm), 1 x 3 modules (H 225 mm)
• Double 20 L stainless-steel waste-bag holders
• Height-adjustable computer arm (for laptop)

Description and construction:

• Modular design with ABS internal guides enabling accessories in ISO 600x400 format (drawers, bins, trays)
• Front open or closed on 5 sides; closure by flush drawers or removable ABS rolling shutter (top to bottom). Central locking optional
• Frame in anodized aluminium and epoxy-coated steel; side and back panels in ABS available in 8 colours; wrap-around ABS bumper (grey)
• Worktop in ABS/PMMA (beige) with side edges
• Ergonomic push handle and two height-adjustable standardized rails (one per side)
• Swivel castors Ø 125 mm (2 with brake): polyamide fork, non-marking grey rubber tread, stainless-steel ball bearings; equipped with cable guards

Technical characteristics / specifications:

• Product reference (SKU): 1006.11M04
• Series / trade name: Eolis®
• Compatible internal format: ISO 600 x 400
• Overall dimensions (L x D x H): 830 x 510 x 1015 mm
• Empty weight: 27.5 kg
• Capacity: 9 modules
• Worktop: ABS/PMMA, dimensions 705 x 480 mm
• Displayed colour: blue
• Main materials: anodized aluminium & epoxy steel frame; ABS panels
• Wheels: Ø 125 mm, 2 braked wheels, non-marking grey rubber tread, stainless-steel ball bearings
• Standard accessories supplied: lockable rolling shutter, 3 trays with pill organizers, 3 flush drawers (1/2/3 modules), double 20 L stainless waste-bag holder, height-adjustable computer arm
