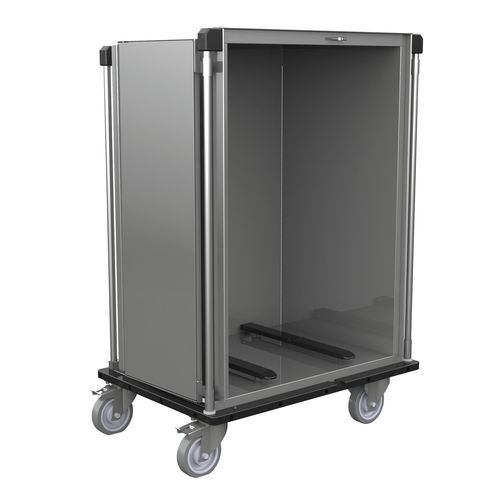

Sterilization cabinet STÉRI'Slide®

transferreprocessingfor instruments

Stainless transfer cabinet in stainless steel designed for transport, handling and disinfection of instruments. Integrates the STÉRI'Slide® system to accept sliding racks. Intended for use in sterilization environments and suitable for tunnel washing.

Main features

• Fully welded AISI 304 stainless steel sheet structure with ribs and reinforcements for rigidity.
• Anti-torsion stainless tube chassis for increased structural stiffness.
• Ribbed pyramidal roof to facilitate water drainage.
• Upper and lower bumpers in high-density polyethylene (HDPE), waterproof and impact-resistant.
• Internal compartment with single or double HDPE slide designed to receive and lock a sliding rack.
• Double-skin doors fitted with a replaceable silicone rubber sealing gasket.
• 270° door opening with magnetic retainers to hold doors in the open position for effective tunnel washing.
• Four vertical handling handles distributed over the full height of the cabinet.
• Four Ø 160 mm wheels (2 fixed, 2 swivel with brakes) in non-marking grey rubber with stainless roller bearings.

Available variants

• DIN format — 2 columns (W 1010 mm)
• DIN format — 2 x 1 column (W 1010 mm)
• DIN format — 3 columns (W 1260 mm)
• ISO format — 2 columns (W 1260 mm)
• ISO format — 2 x 1 column (W 1260 mm)

Characteristics / technical specifications

• Main material: AISI 304 stainless steel (structure and chassis).
• Elements in HDPE: bumpers and internal slides for racks.
• Gaskets: replaceable silicone rubber sealing gasket on doors.
• Door opening: 270° with magnetic retainers to hold doors open.
• Handling: four vertical handles along the full height.
• Wheels: 4 × Ø 160 mm (2 fixed, 2 swivel with brakes) in non-marking grey rubber; stainless roller bearings.
• Designed for: compatibility with sliding-rack systems and disinfection in tunnel washers.
