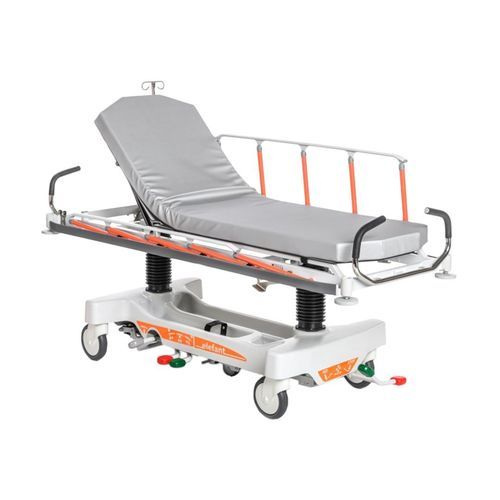

Emergency stretcher trolley 203.20medical imaginghydraulicheight-adjustable
Add to favorites
Compare this product
Characteristics
- Applications
- emergency, medical imaging
- Operation
- hydraulic
- Features
- height-adjustable, with adjustable backrest
- Number of sections
- 2-section
- Accessories
- with side rails, with IV pole, with oxygen cylinder
- Other characteristics
- stainless steel, X-ray transparent, with brake system, washable
- Maximum load
330 kg
(727.53 lb)- Length
213 cm
(84 in)- Width
80 cm
(31 in)- Height
Max.: 89.5 cm
(35.2 in)Min.: 56.5 cm
(22.2 in)- Wheel diameter
200 mm
(7.9 in)
Description
Technical description
Dimensions and capacity
Technical specifications
- Hydraulic variable height and tilt (incline/decline) with bilateral foot-pedal control; gas-spring assisted backrest adjustment.
- Epoxy-coated steel chassis with molded ABS cover including oxygen cylinder holder and storage; corner bumper rollers for impact protection.
- Two-section radiotransparent HPL sleeping surface suitable for diagnostic imaging.
- 80 mm PU foam mattress with removable vinyl cover and securing Velcro straps for easy cleaning and infection control.
- Retractable barred side rails with stainless steel handles (retractable at head, fixed at foot); foldable stainless steel IV pole with two hooks.
- Ø 200 mm castors with centralized locking for manoeuvrability and stationing.
Dimensions and capacity
- Overall dimensions: L 2130 x W 800 x H 565 > 895 mm.
- Sleeping surface dimensions: L 1920 x W 630 mm.
- Maximum load capacity: 330 kg.
Technical specifications
- Variable height and hydraulic incline/decline with bilateral foot control.
- Gas-spring assisted backrest lift.
- Epoxy-coated steel chassis for durability and sterilizable surfaces.
- Molded ABS cover with integrated oxygen bottle support and storage compartments.
- Two-section HPL radiotransparent mattress platform compatible with X‑ray procedures.
- 80 mm PU foam mattress with removable vinyl cover and Velcro retention straps.
- Retractable side rails with stainless steel handgrips (head retractable / foot fixed).
- Foldable stainless steel IV pole with two hooks.
- Ø 200 mm wheels with centralized locking system.
- Overall dimensions: L 2130 x W 800 x H 565 > 895 mm.
- Sleeping surface: L 1920 x W 630 mm.
- Maximum load: 330 kg.
