Transfer trolley 417.25

wastetransportlogistics

Presentation

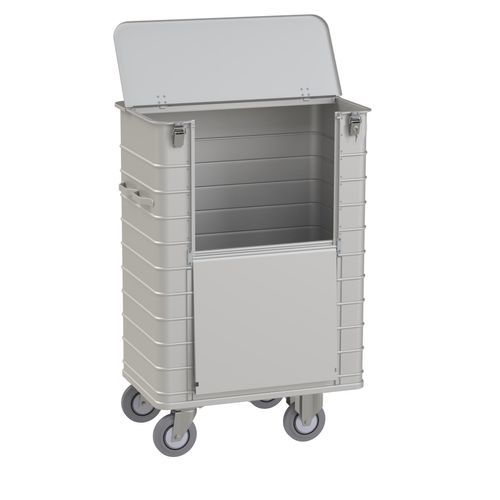

Aluminum alloy container trolley with ribbed monobloc side wall, designed for industrial collection and internal logistics. Entire chassis and panels are made of anodized aluminum for reduced weight and long-term surface protection. Suitable for material handling, waste collection and transport in industrial environments.

Reference
Ref. 417.25

Available capacities

• 360 litres (H 975 mm)
• 360 litres (H 1005 mm)
• 760 litres
• 1100 litres

Technical description

• Construction in anodized aluminum alloy (chassis and side wall).
• Protective anodized layer thickness: 10 μm. Anodization applied to the finished trolley body.
• Chassis formed from aluminum profiles.
• Ribbed monobloc side wall in 1.5 mm aluminum sheet with upper edges reinforced by aluminum profiles.
• Diamond-pattern floor equipped with a drain plug.
• Peripheral lower bumper in aluminum profile.
• Opening / Closing: double door (lid + fold-down front) with 270° foldable nylon hinges and retention of the lid in open position at 110°.
• Lid fitted with latch system including one lockable latch with key.
• Horizontal maneuvering handles located on the swivel wheel side.
• 4 wheels Ø 125, 160 or 200 mm (2 fixed + 2 swivel); zinc-plated steel fork; non-marking grey rubber tread; stainless steel ball bearings.

Specifications

• Material: anodized aluminum alloy (chassis and side wall).
• Anodizing protection: 10 μm layer.
• Side wall thickness: 1.5 mm.
• Side wall type: ribbed monobloc.
• Floor: diamond-pattern with drain plug.
• Opening system: double door (lid + fold-down front), 270° nylon hinges, retention at 110°.
• Locking: latches with one key-secured latch.
• Handles: horizontal, on swivel wheel side.
• Wheels: 4 (2 fixed + 2 swivel); available diameters 125 / 160 / 200 mm; zinc-plated steel fork; non-marking grey rubber tread; stainless steel ball bearings.
• Peripheral lower bumper in aluminum profile.
