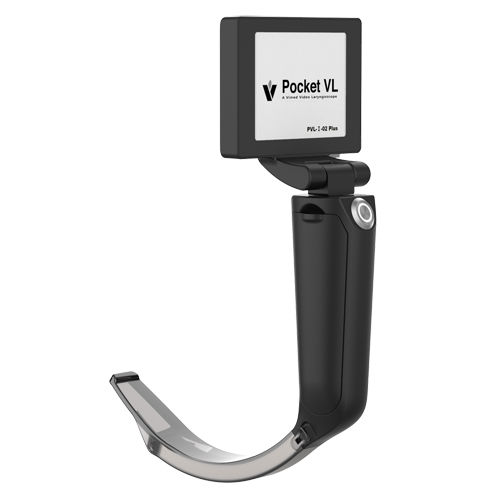

Video laryngoscope PVL-I-02 Plus

with integrated video monitorwith blade

Specifications Camera Digital advanced imaging-display system: ≥1MP Field of View (FOV): 75°±10° Frame Rate: 30 fps Depth of Field: 5-100mm Battery Standard rechargeable Li-ion battery 18500 3.7 VDC / 2,040mA Operating time of fully charged batteries of 240+ min. Rechargeable ≥ 300 times Display High resolution 960 x 480 P 3-inch with tempered scratch-resistant glass Two-way rotatable: vertical ≥180°, horizontal ≥320° View Angle: typical 85° all directions Memory 32 GB internal memory Blades Smaller size blades Disposable blades Patients Suitable for all patients Description Upper-market device produced in the Netherlands and designed for Western markets with maximum functionality at a higher price. The screen is collapsible and allows for transportation in a jacket pocket. Ergonomic design in an aluminum housing with scratch-resistant coating for highest durability. Water resistance of the handle of IPX7 and of the monitor of IPX4. The Plus variant uses MAC blades, which are slimmer than the standard MD blades, more curved and available for children and adults. Mac-00 is designed for (1.5-5Kg) preterm and new born; Mac-0 for (5-15Kg) pediatrics and Mac-1 (15-25Kg) for children. Mac-2 is designed for (25-60Kg) patients, Mac-3 for (60-90Kg) patients, and Mac-4 for (≥90Kg) tall adults. Mac-3D is designed for difficult airway. With Mac-2M (for 25-60Kg), Mac-3M (for 60-90Kg) and Mac-4M (for 60-90Kg), intubations can be done without a stylet.
