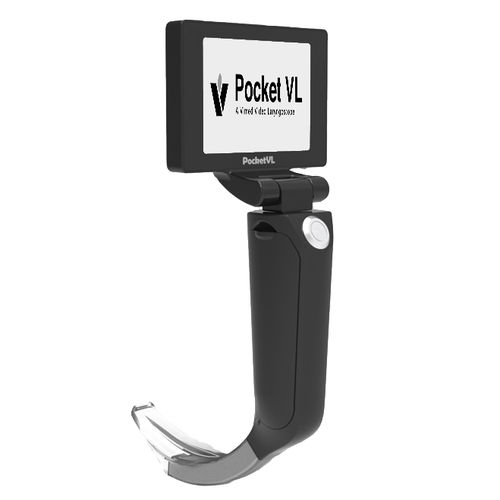

Video laryngoscope PVL-I-01

pediatricwith integrated video monitorwith blade

Specifications Camera Standard imaging-display system: ≥1MP Field of View (FOV): 65°±10° Frame Rate: 30 fps Depth of Field: 5-100mm Battery Standard rechargeable Li-ion battery 18500 3.7 VDC / 2,040mA Operating time of fully charged batteries of 240+ min. Rechargeable ≥300 times Display High resolution 640 x 480 3-inch with tempered scratch-resistant glass Two-way rotatable: vertical ≥180°, horizontal ≥320° View Angle: typical 85° all directions Memory 16 GB internal memory Blades Standard size blades Disposable blades Patients Suitable for most patients Description A basic and cost effective video laryngoscope designed for upper developing market. One key controls: power On/Off, photo-taking and video-recording. The screen is collapsible and allows for transportation in a jacket pocket. Ergonomic design in an aluminum housing with scratch-resistant coating for highest durability. Water resistance of the handle of IPX7 and of the monitor of IPX4. Its blades are made of German-made medical grade PC. MD-0 is designed for (5-15Kg) pediatrics, MD-1 for (15-25Kg) children. MD-2 is designed for (25-60Kg) adults and MD3 for (60-90Kg) adults.
