Polymethylpentene beaker 60695

graduatedGriffin

Product description

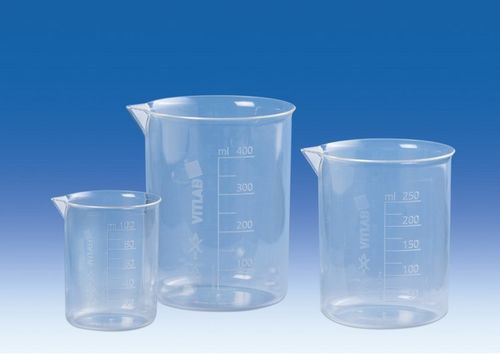

Crystal-clear Griffin beakers in PMP (polymethylpentene) with molded graduations for direct volume reading. According to ISO 7056. Autoclavable at 121 °C (2 bar) according to DIN EN 285.

Types / Sizes
Volume ml | Graduation ml | Ø mm | Height mm | PU | Cat. No.
25 | 5 | 38 | 50 | 12 | 60695
50 | 10 | 47 | 60 | 12 | 60795
100 | 10 | 55 | 70 | 12 | 60895
150 | 20 | 66 | 80 | 12 | 60995
250 | 25 | 77 | 95 | 6 | 61095
400 | 50 | 87 | 112 | 6 | 61195
500 | 50 | 94 | 118 | 6 | 61895
600 | 50 | 100 | 127 | 6 | 61295
1000 | 100 | 120 | 147 | 6 | 61495
2000 | 200 | 149 | 187 | 6 | 61595
3000 | 250 | 170 | 212 | 4 | 61695
5000 | 500 | 203 | 247 | 4 | 61795

Note
150 ml, 400 ml, 600 ml: Variants in addition to ISO 7056.

Downloads
Volume Measurement — Application areas, PDF, 2 MB.

Characteristics / technical specifications

• Series: Griffin beakers
• Material: PMP (polymethylpentene)
• Graduations: Molded graduations
• Appearance: Crystal clear
• Standards: According to ISO 7056
• Autoclavable: 121 °C (2 bar) according to DIN EN 285
• Available volumes and catalogue numbers: see Types / Sizes table above
• Packaging units (PU): as per table (values between 4 and 12)
• Product page data-sku: 90060600005
