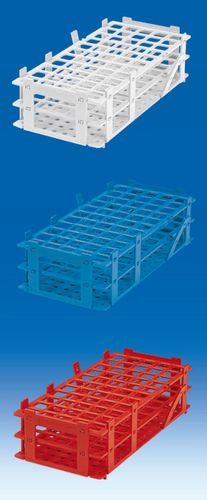

Test tube laboratory rack 3190940

test tubepolypropylene

Overview
Stackable, lightweight and space-saving test tube racks with alphanumeric positions for sample identification. Suitable for tempering in a water bath, storage in a refrigerator and incubation. Supplied flat and assembled into a rigid, permanent rack in a few simple steps.

Operating conditions and dimensions
Operating temperature: -20 to +90 °C.
Base (L x W): 265 x 126 mm.

Variants / Sizes
Color | For Ø up to mm | Positions | Height mm | Pack | Ref.
White | 13 | 6 x 14 | 75 | 5 | 3190940
White | 16 | 5 x 11 | 75 | 5 | 3191940
White | 18 | 5 x 11 | 75 | 5 | 3192940
White | 20 | 4 x 10 | 75 | 5 | 3193940
White | 25 | 4 x 8 | 88 | 5 | 3194940
White | 30 | 3 x 7 | 88 | 5 | 3195940
Blue | 13 | 6 x 14 | 75 | 5 | 3190948
Blue | 16 | 5 x 11 | 75 | 5 | 3191948
Blue | 18 | 5 x 11 | 75 | 5 | 3192948
Blue | 20 | 4 x 10 | 75 | 5 | 3193948
Blue | 25 | 4 x 8 | 88 | 5 | 3194948
Blue | 30 | 3 x 7 | 88 | 5 | 3195948
Red | 13 | 6 x 14 | 75 | 5 | 3190943
Red | 16 | 5 x 11 | 75 | 5 | 3191943
Red | 18 | 5 x 11 | 75 | 5 | 3192943
Red | 20 | 4 x 10 | 75 | 5 | 3193943
Red | 25 | 4 x 8 | 88 | 5 | 3194943
Red | 30 | 3 x 7 | 88 | 5 | 3195943

Characteristics / Technical specifications

• Material: PP (polypropylene).
• Stackable for compact storage.
• Lightweight and space-saving design.
• Alphanumerically labelled positions for sample identification.
• Suitable for water-bath tempering, refrigerated storage and incubation.
• Supplied flat; simple assembly produces a permanent, rigid rack.
• Operating temperature: -20 °C to +90 °C.
• Dimensions (L x W): 265 x 126 mm.
• Available variants cover tube diameters up to 13, 16, 18, 20, 25 and 30 mm and different position configurations (e.g. 6 x 14, 5 x 11, 4 x 10, 4 x 8, 3 x 7).
• Standard pack quantity indicated in the Pack column (e.g. 5 units).
