Sterilization service sterilizer VitroSteril LK/CXD

hospitalhome carefor surgery units

Description

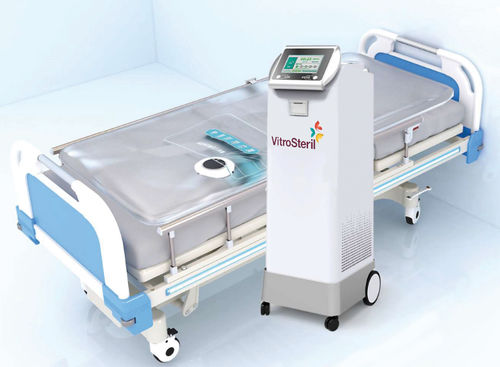

Mobile VitroSteril LK/CXD hospital bed sterilizer on wheels. Designed to reduce the risk of cross-infection between patients, it can sterilize mattresses, bed linen and surrounding environments. It can operate with open emission when no people or animals are present or using the supplied sealed bags. The unit is a high-concentration ozone generator operating in a closed circuit, capable of treating one or two mattresses simultaneously. Sanitization cycles last 1 hour; sterilization cycles last 2 hours.

Risk context

• Patients in hospitals are at higher risk of cross-infection.
• Bed fabrics and dressing materials are difficult to sterilize effectively on-site.

Features

• High-concentration ozone generator sterilization principle.
• Capacity: 45–50 linens per cycle or an environment up to 100 m³.
• Rapid and effective elimination of bacteria, viruses and spores.
• Removes odors (blood, human waste, mold and refuse).
• Simple linear design with fire-retardant enclosure.
• Integrated control and computerized management program.
• Ozone residues are degraded and expelled through activated carbon filters.

Applications

• Hospitals: bed linen, clothing, pillows, mattresses, beds, trolleys, operating-room items, etc.
• Hotels: sheets, pillowcases, bath linen and towels, mattresses.
• Home: clothing, sheets, bath linen and towels.

Technical specifications

• Model: VitroSteril LK/CXD
• Installation: freestanding, mounted on wheels for mobility
• Sterilization capacity: 45–50 linens per cycle or space up to 100 m³
• Ozone concentration: 300 mg/m³
• Disinfection efficacy: Escherichia coli > 3.0 log reduction; Staphylococcus aureus > 3.0 log reduction
• Sanitization: 1 hour; Sterilization: 2 hours
• Number of mattresses treated: 1–2 simultaneously
• Dimensions (W×H×D): 400 × 980 × 430 mm
• Weight: 31 kg
• Voltage: 220 V 50 Hz
• Power: 220 W
