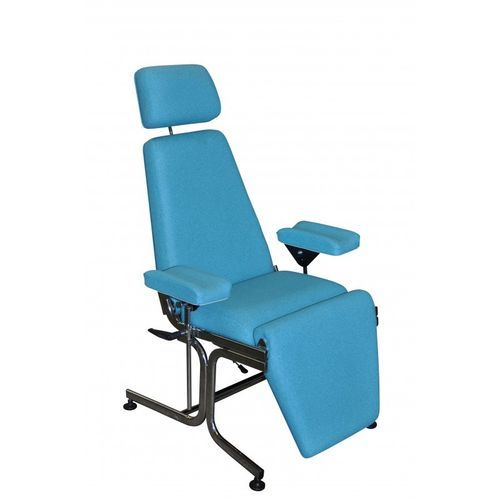

Pneumatic blood donor chair 3103/1

3-sectionwith armrestswith legrest

FEATURES:
- Epoxy-coated rectangular tube frame.
- Stitched upholstery, 100 mm thickness.
- Independent adjustment of backrest and leg rest by gas spring.
- Headrest adjustable in height (180 mm range) and depth (100 mm range).
- PVC armrests, gutter-shaped, height-adjustable and tiltable.
- Backrest sloping at 8°.

DIMENSIONS:
- Backrest dimensions: L. 630 × W. 500 mm.
- Seat: L. 380 × W. 500 mm.
- Leg rest: L. 480 × W. 500 mm.
- Overall dimensions: L. 1890 × W. 800 × H. 510 mm.
- Weight of the chair (product description): 35 kg.
- Load capacity: 200 kg.
- Warranty: 4 years (excluding upholstery).

OPTIONS:

• Serum carrier stem (2050/80)
• IV pole holder (3053/D)
• Pair of PU armrests with ball joint system (BALL JOINTS/ACC)
• Roll holder (2009/0)
• Crystal clear seat protector (PROTEC)
• Crystal clear leg protector (PROTEC/JAMB)

SPECIFIC REFERENCES:
Reference: 3103/2
EAN13: 3760315451283

TECHNICAL SPECIFICATIONS:

• Brand: Vog Medical
• Reference (SKU): 3103/2
• EAN13: 3760315451283
• Chair weight (product description): 35 kg
• Product weight (metadata): 25 kg
• Load capacity: 200 kg
• Upholstery thickness: 100 mm
• Headrest adjustment: height range 180 mm, depth range 100 mm
• Backrest & leg rest: independent adjustment by gas spring
• Backrest slope: 8°
• Frame: epoxy-coated rectangular tube
• Warranty: 4 years (excluding upholstery)
