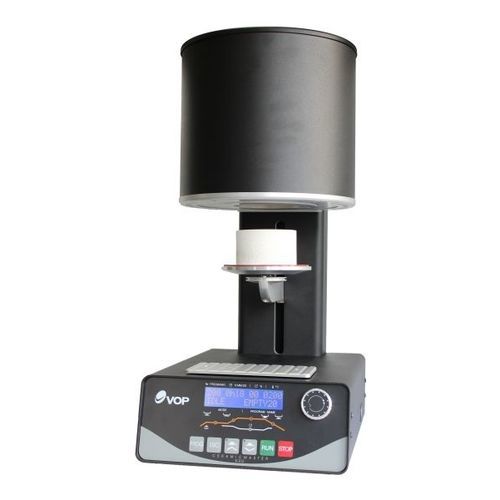

Dental furnace Ceramicmaster E20

for ceramicsrefrigeratedautomatic

AUTOMATIC PROGRAMMABLE VACUUM FURNACE FOR DENTAL CERAMICS. designed for all available types of dental metal ceramics 201 operating programs completely controlled process - 14 programmable parameters in every program: name, idle temperature dry temperature, pre drying time, drying time, firing, first cooling time, second cooling time, vacuum control improved system of self-diagnostics and auto calibration multifunctional handle easy for operation a quartz muffle an option for automatic continuation of the program after short power breakdown an option for transfer of program parameters on USB an option for remote analysis of damage Accessories: isolation table Ref. № 122000025 firing tray Ref. № 122000026 pins Ref. № 122000027 Vacuum pump PVM122 Ref. № 032000000 TECHNICAL DATA Power supply - ~230 V ±10%, 50/60 Hz Power consumption - Furnace with vacuum pump - 1700 W Furnace without vacuum pump - 1550 W Vacuum pump data - Adjustable vacuum - from 0,1 to 0,92 bar Firing chamber dimensions - Ф 95 mm, h 60 mm Dimensions (W/D/H) - 265/370/565 mm Weight - 24 кg
