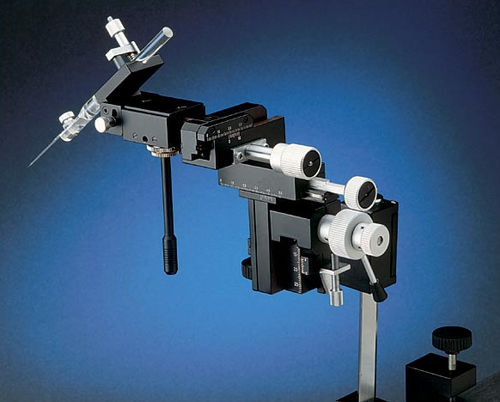

Manual micromanipulator Joystick, MM-33

Joystick Manual Micromanipulator A very sensitive mechanical joystick micromanipulator. Joystick reduction gear ratio from 1:15 to 1:150 Fine positioning on Z-axis (vertical) gives 3 mm (0.12 in) of movement per revolution Lever tips the tool quickly for such actions as hanging a Petri dish and the preset stop returns tool tip to focus plane Stop screw prevents damaging probe tip Probe holder tilts to 90° Available for right- or left-handed use (MM-33) Standard Manual Control Micromanipulators Manual control micromanipulators are among the last pieces of classic research equipment that function by basic precision engineering. 20 mm of travel in lateral (Y-axis) and vertical (Z-axis) graduated in 0.1 mm increments 37 mm of travel in probe direction (X-axis) graduated in 0.1 mm increments plus 10 mm of travel with fine positioning in 0.01 mm increments All three control knobs located in a single plane for one-handed operation and close positioning of several instruments side-by-side For use with microscope magnifications up to 250x
