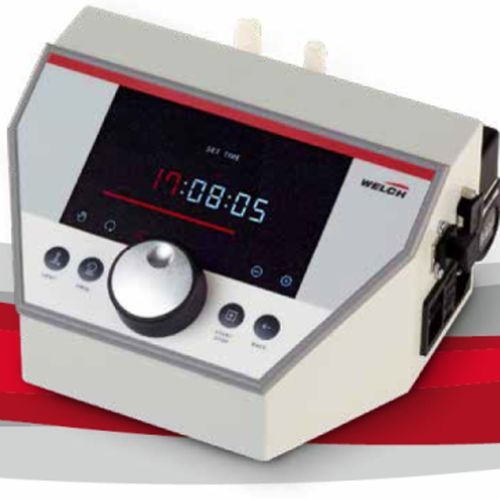

Pressure controller VCpro 601

Overview
The VCpro 601 vacuum controller measures and displays vacuum pressure both graphically and digitally and regulates pressure in the range 1–1100 mbar (825–0.75 Torr). It includes a timed ramp function for controlled pressure ramps (e.g., distillation, vacuum drying) and a programmable mode for defining pressure profiles over time. The chemically resistant ceramic thick-film hybrid sensor is gas-independent and provides absolute pressure readings. Direct PC communication and data logging are available via RS232 or LAN. The controller operates an inline open/close solenoid valve and can be used with various vacuum sources, including diaphragm pumps commonly paired with small rotary evaporators.

Features

• Graphical and digital vacuum pressure measurement and display
• Vacuum control range: 1–1100 mbar (825–0.75 Torr)
• Timed ramp function for controlled pressure ramps (distillation, drying)
• Programmable mode to define pressure over time
• Chemically resistant ceramic thick-film hybrid sensor (gas-independent, absolute pressure)
• PC communication and data logging via RS232 and LAN
• Controls vacuum via integrated open/close solenoid valve (inline)
• Supports manual real-time control and automatic distillation control

Technical data (summary)
DESCRIPTION: VCpro 601
Vacuum Pressure Control Range, mbar (Torr): 1-1100 (825-0.75)
Pressure Reading Accuracy: ±0.3% Full Scale
Control Accuracy (mbar or Torr): ±1
Vacuum Control Approach: Open/Close Solenoid
Manual real-time control: Yes
Automatic distillation control: Yes
Programmable mode: Yes
Languages available: EN, DE, ES, FR, RU, ZH
Max. Power Consumption: 40 W
Operating Temperature Range: 15 to 30 °C
Rack Mountable: Threaded: 2 x M4 – 116 mm
Agency: CE
Communication: RS232 / RJ45 (LAN)
Connection to Pump: DN8 (1/4 in ID tubing)
Connection to Vacuum Apparatus: DN8 (1/4 in ID tubing)
Inert Gas Port to Release Valve: DN4 (1/8 in ID tubing)
Protection Degree: IP20
Dimensions (W x D x H): 195 x 178 x 105 mm (7.7 x 7.0 x 4.1 in)
Weight: 1.5 kg (3.3 lbs)
Shipping Box Dimensions (L x W x H): 36 x 31 x 26 cm
Shipping Weight: 4 kg

Technical specifications

• Model: VCpro 601
• Control range: 1–1100 mbar (825–0.75 Torr)
• Pressure reading accuracy: ±0.3% Full Scale
• Control accuracy: ±1 (mbar or Torr)
• Control method: Open/Close solenoid valve (inline)
• Manual real-time control: Yes
• Automatic distillation control: Yes
• Programmable mode: Yes
• Languages: EN, DE, ES, FR, RU, ZH
• Max. power consumption: 40 W
• Operating temperature: 15–30 °C
• Rack mountable: Threaded 2 x M4 – 116 mm
• Agency: CE
• Communication: RS232 / RJ45 (LAN)
• Pump connection: DN8 (1/4 in ID tubing)
• Vacuum apparatus connection: DN8 (1/4 in ID tubing)
• Inert gas port: DN4 (1/8 in ID tubing)
• Protection degree: IP20
• Dimensions (W x D x H): 195 x 178 x 105 mm
• Weight: 1.5 kg
• Shipping box dimensions: 36 x 31 x 26 cm
• Shipping weight: 4 kg
