Intel® Core i7 medical panel PC MP-615

Intel® Core i5all-in-oneHD

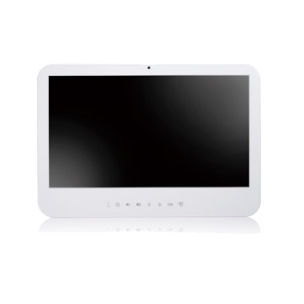

The 15.6' MP-615 is a fanless and cost effective, easy to clean, Panel PC for different types of patient treatment areas. The display is bright and has a capacitive touch screen, which can be controlled with your fingers and with gloves. It is a ideal solution to replace Notebooks, because it can be disinfected and it fulfills the strict norms for the Patient Environment. MP-615 IP rating is IP65/43. The casing is hygienic and made from rugged ABS plastic. Passive heat control is carried out by internal heat pipes that lead the heat to the heat grill located on the back of the device. MP-615 can be used, for example, as the nurses work station and it can be also installed on a variety of racks and carts. The internal battery can be included as an option, which has obout 45 minutes to 1 hour of operational time. Specifications CPU - Intel® Core™ i7-5500U Intel® Core™ i5-5200U Chipset - BGA1364/ Intel® System on a Chip (SoC) Graphics - Intel® HD Graphics 5500 (Direct X 11) onboard, with Video- and 3D acceleration, 3 monitors operation Memory - SoDimm DDR3L 1600Mhz, max. 16GB, Dual Channel Speaker - 2x 1.5 Watt polypropylene speaker External I/O - 2x Display Port out 2x Analog Audio 2x USB 2.0 2x USB 3.0 2x RJ45 LAN 1xCOM-RS232 1xCom-RS232/RS422/RS485 Storage HDD - max. 2x S-ATA 2,5” and 1x MSATA Isolated ports (optional) - 2 x RS232 1 x LAN 1 x USB Internal slot - 1 x PCI-e x 16 2 x Mini PCI-e Operating elements - projected to the front capacitive Power on/off brightness, volume Backlight on/off Touch on/off LAN - 2x Intel i210AT Gigabit LAN Power pack - medical, external, 100 W table power pack
