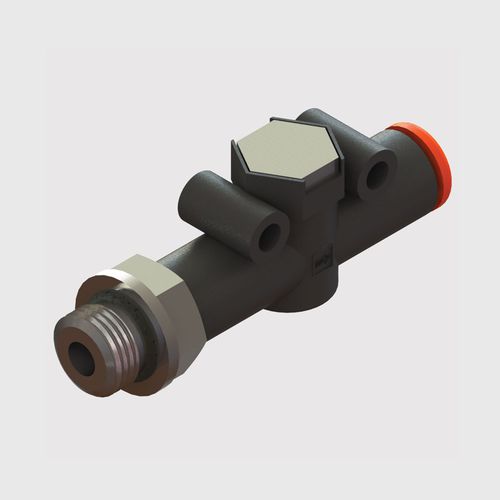

Medical check valve E-C-180114

polypropylene

Plastic Bodied Check Valves with Buna-N Seal Extended Description In-line Technopolymer bodied check valves with an internal Buna-N valve Description Technopolymer Bodied Check Valve, Buna-N Seal, 4mm OD Push-In, Cracking Pressure 7 psi Extended Description An in-line Technopolymer bodied check valve with an internal Buna-N valve, Ø 4mm inlet and Ø 4mm outlet push to connect fittings and a cracking pressure of ≤ 7 psi Ambient Temperature -20°C – 60°C (-4°F – 140°F) Mounting Style In-line Connection 1 4mm OD Push-in Fitting Connection 2 4mm OD Push-in Fitting Recommended Filtration Depending on application Media Temperature -20°C – 60°C (-4°F – 140°F) Non-Wetted Materials Technopolymer, Nickel plated Brass Wetted Materials Technopolymer, Nickel plated Brass, Buna-N, Stainless Steel
