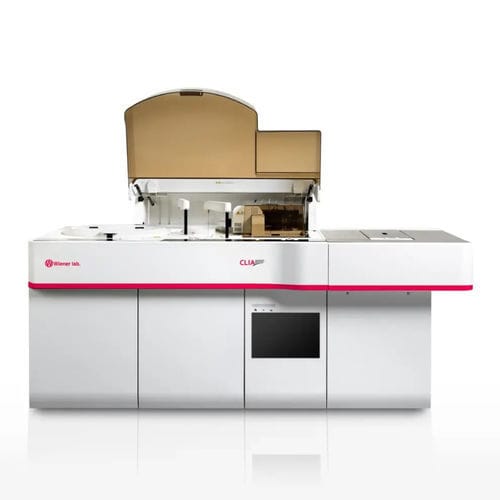

Automatic immunoassay analyzer CLIA 2000

for clinical diagnosticalkaline phosphataseplatform

High sample handling capacity Precise Reliable results Extensive menu of tests Main features: Software: Friendly and easy to learn Host query Profile programming and easy navigation Measuring system: Methodology: Superparamagnetic particles as a solid phase and conjugates labeled with alkaline phosphatase (ALP) using AMPPD as a substrate Temperature: 37 ° C +/- 0.3 ° C +/- 0.2 ° C Cuvettes: disposable and individual Loading reaction cuvettes continuously Vortex mixed Detection mode: photon counter Detector: photomultiplier tube (PMT) Reference source: LED Sampling system: Samples: Continuous loading per sample rack Sample rack: 10 positions per rack, compatible with CMD 800 Series and CLIA 1000 Sample probe: liquid level detection, clot detection, collision protection Built-in or external barcode scanner Automatic sample dilution and reflex tests Reagent system: Reagents: 36 refrigerated reagent positions, continuousload and magnetic particle stirring Reagent presentation: 100 tests / kit (2x50 tests) and 200 tests / kit (2x100 tests) Built-in or external barcode scanner Reagent Probe: Liquid detection, bubble detection, horizontal and vertical collision protection Reagent volume: 20 μL -200 μL with 1 μL increments Substrate: Load continues Incubation at constant temperature Aspiration volume: 200 μL
