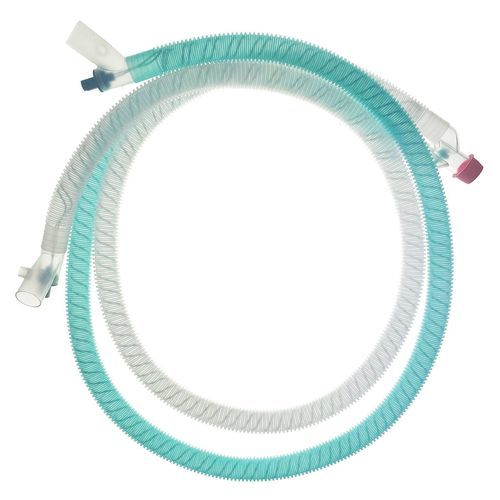

Adult breathing circuit BTS3458A

pediatricinfantdisposable

Product overview
WILAmed offers a comprehensive selection of heated and non-heated single-use breathing sets for neonatal, pediatric and adult patient ventilation. Available in single‑limb and dual‑limb configurations with over 300 configurations in diameters 10 mm, 15 mm and 22 mm. Manufactured at WILAmed's Kammerstein (Germany) site using medical-grade materials, in-house injection moulding and extrusion, and a dedicated breathing set assembly facility. Compatible with AIRcon Gen 2 respiratory humidifiers and commonly used intensive care ventilators. Heating technologies include internal straight heating wire, coiled heated wire (CHW) and a neonatal solution with heating wire integrated into the tube helix.

Applications

• Critical care / Emergency medicine
• Surgery / Anaesthesia
• Mechanical ventilation / Weaning
• nCPAP / O2 therapy

Product features and options
Options include temperature monitoring, bacterial filters, valve kits, control lines, water traps, specialized connectors and a wide variety of treatment‑relevant components to adapt the set to clinical workflows.

New: 180 cm XXXL Breathing tube
The portfolio now includes an extended‑length breathing tube (180 cm) to increase reach and flexibility for ventilator positioning and patient handling.

• Greater flexibility in ventilator positioning, suited to ceiling‑mounted booms or centralized ICU supply systems
• Reduced strain on endotracheal or tracheostomy tubes, helping to minimise accidental displacement risk
• Enhanced opportunities for patient mobilisation during mechanical ventilation when tube weight is supported
• Less tension on tube connections when patient and ventilator are not side‑by‑side

Order Information
Part number | Item
271686 / 27168610 | BTS3458A – Breathing set heated, dual limb, humidification chamber – Ø22 mm, 180 cm

Technical specifications

• Product type: Heated and non‑heated single‑use breathing sets
• Configurations: Single‑limb and dual‑limb
• Available diameters: 10 mm, 15 mm, 22 mm
• Number of configurations: More than 300
• Lengths: includes 180 cm XXXL variant
• Heating technologies: internal straight heating wire; coiled heated wire (CHW); neonatal heating wire integrated into tube helix
• Compatibility: AIRcon Gen 2 humidifier series and common intensive care ventilators
• Options: temperature monitoring, bacterial filters, valve kits, control lines, water traps, specialized connectors
• Manufacturing: in‑house injection moulding and extrusion, dedicated assembly at Kammerstein, Germany
• Part numbers / references: 271686, 27168610; internal item reference: BTS3458A
