Heat therapy unit Winshock

cryotherapy unittabletop

Overview

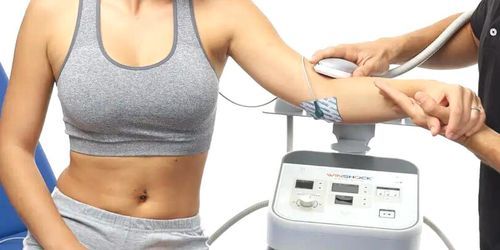

Winshock is a portable cryo-thermo therapy device that combines CRYOSHOCK (controlled cryo/thermo) with STIMSHOCK (low- and medium-frequency electrical currents) to treat inflammation, stimulate lymphatic drainage and accelerate recovery in physiotherapy, sports medicine and post-operative care.

INNOVATIVE ALLIANCE
The combined action of CRYOSHOCK (rapid temperature modulation) and STIMSHOCK (PUSH & PRESS low/medium frequency currents) amplifies hot/cold therapy effects at deeper tissue levels. Electrical currents can be delivered either through two cold-generating electrodes or via stimulation pads, depending on the clinical objective.

Working modes

• PUSH IN (deeper cold penetration): Manual mode usable up to +15°C to maximise deep anti-inflammatory effect and sustained pain reduction.
• PUSH BACK (accelerated drainage): Stimulates lymphatic return to lymph nodes to speed evacuation of lymph, particularly useful in the post-operative phase and edema management.
• PRESS (muscle rehabilitation): Comfortable deep stimulation recruiting muscle fibers to strengthen tissue and shorten recovery time after trauma.

Power & Mobility
Rapid thermal range from -15°C to 45°C in as little as 25 seconds. Lightweight and portable (device under 5 kg) with two thermo-electric generators for fast transitions across temperature thresholds.

Applications

• Treatment of inflammation and acute traumatic injuries
• Stimulation of lymphatic drainage and management of edema
• Sports recovery and physiotherapy
• Post-operative rehabilitation

Expert testimony
Samuel ROCES, physiotherapist of the Groupama-FDJ cycling team, has used Winshock in competitive settings to optimise recovery where mobility limits conventional ice application and fast turnaround is required.

Technical specifications

• Model name: Winshock
• Technology: CRYOSHOCK (cryo/thermo) combined with STIMSHOCK (low- and medium-frequency electrical currents)
• Temperature range: -15 °C to 45 °C
• Temperature transition time: up to 25 seconds between extremes
• Weight: device under 5 kg
• Thermo-electric components: two thermo-electric generators for rapid switching
• Electrical modes: PUSH IN, PUSH BACK, PRESS
• Electrode options: two cold-generating electrodes or stimulation pads
• Intended uses: inflammation treatment, lymphatic drainage stimulation, muscle strengthening and rehabilitation, sports recovery, post-operative care
