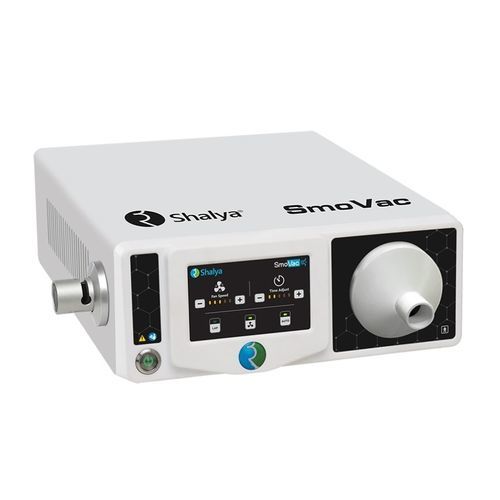

Healthcare facility smoke aspirator SmoVac

dentalfor dental clinicswith filtration system

Product overview
SmoVac by Shalya is a dedicated surgical smoke evacuation system designed for removal of hazardous surgical plume during open and laparoscopic procedures. It features four-stage filtration including ULPA media and activated carbon, selectable automatic/manual operation and synchronization with electro-surgical units via the Surgi-Sync module.

Overview

• Automatic smoke evacuator system
• Single unit for both open and laparoscopic surgery
• Four-stage ULPA and activated carbon filtration
• High vacuum flow with adjustable suction
• Surgi-Sync module for ESU-synchronized auto activation

Applications
Intended for use in open and laparoscopic surgeries, laser procedures, dental surgical applications, ultrasonic scalpel operations and ultrasonic surgical aspirators where surgical smoke or plume is generated.

Features

• Adjustable flow control to set suction level for different surgical steps
• Adjustable time delay to define activation period after ESU trigger
• Selectable surgical mode for Open or Laparoscopic workflows
• Selectable operating mode: Automatic (Surgi-Sync) or Manual (foot switch)
• Surgi-Sync module detects ESU activation for synchronized evacuation
• Four-stage filtration with ULPA media for particulate capture and activated carbon for odor and organic vapors
• ULPA efficiency: removes up to 99.999% of airborne particles
• Filter life: up to 35 hours with easy replacement design
• User-friendly interface and foot-switch interface for manual control

Technical specifications

• Product name: SmoVac
• Filtration: Four-stage filtration including ULPA media and activated carbon
• ULPA efficiency: Removes 99.999% of dust, pollen, mold, bacteria and airborne particles
• Operating modes: Automatic and Manual
• Auto-activation: Surgi-Sync module to detect ESU activation
• Compatibility: Attachable to standard monopolar pencil via adaptor (converts pencil to smoke evacuation pencil)
• Application types: Open surgery, Laparoscopic surgery, Laser surgery, Dental procedures, Ultrasonic scalpel and ultrasonic aspirators
• Control features: Adjustable flow control and adjustable time delay
• Interfaces: Foot switch interface for manual operation
• Filter life: Up to 35 hours
• Design notes: Single unit for both open and lap procedures; high vacuum flow; easy filter replacement; intuitive controls
