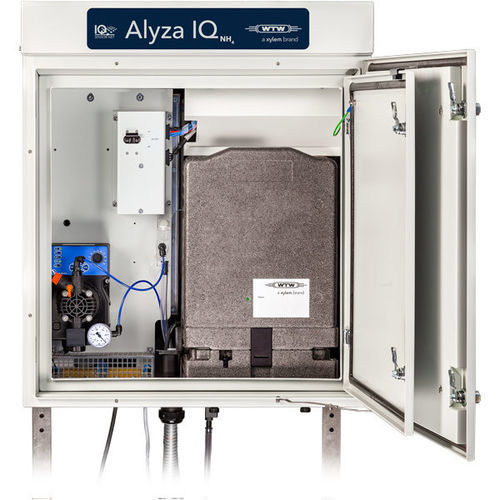

Multichannel photometer Alyza IQ NH4

with automatic calibration

Overview
On-site analyzer for continuous ammonium (NH4-N) monitoring in wastewater effluent and surface waters. Designed for integration into IQ SENSOR NET for centralized data handling.

Key features

• Minimized reagent consumption and reduced waste
• Reliable results at very low NH4 concentrations
• Low maintenance requirements
• Simple operation and IQ SENSOR NET compatibility

Measuring principle
The Alyza IQ NH4 uses wet-chemical photometric detection based on the Berthelot (Indophenol) method according to DIN 38 406. Measurement is performed directly in the process stream for on-site monitoring.

Highlights

• Extremely low reagent use, reducing operating costs and waste generation
• Simple service: typical maintenance approx. 10 minutes every 2–3 months
• Accurate results across two measuring ranges: MR1 0.02–5.00 mg/l NH4-N and MR2 0.10–20.00 mg/l NH4-N
• Automatic cleaning and selectable 1- and 2-point calibration intervals for operational safety
• On-site installation possible (climate package available) for outdoor operation

Models

• Alyza IQ NH4-110 – NH4 analyzer, 2 measurement ranges, 1 channel (Order No. 825010)
• Alyza IQ NH4-111 – NH4 analyzer, 2 measurement ranges, 1 channel, incl. pump (Order No. 825011)
• Alyza IQ NH4-112 – NH4 analyzer, 2 measurement ranges, 2 channels, incl. 2 pumps (Order No. 825012)

Applications

• Wastewater treatment plant effluent monitoring
• River and surface water monitoring

Technical details / specifications

• Measurement method: Berthelot (Indophenol) method
• Measurement ranges:
  MR1: Display 0.00 … 5.00 mg/l NH4-N; Measuring range 0.02 … 5.00 mg/l NH4-N; Resolution 0.01 mg/l NH4-N; Accuracy ±2 % ±0.02 mg/l
• MR2: Display 0.00 … 20.00 mg/l NH4-N; Measuring range 0.10 … 20.00 mg/l NH4-N; Resolution 0.01 mg/l NH4-N; Accuracy ±3 % ±0.10 mg/l
• Sample streams / channels: 1 (Alyza IQ NH4-110), 1 (Alyza IQ NH4-111), 2 (Alyza IQ NH4-112)
• Cleaning: Automatic cleaning with cleaning solutions
• Calibration: Automatic 1- and 2-point calibrations (selectable intervals)
• Operating temperature: -20 … +40 °C (-4 … 104 °F)
• Wet-chemical, on-site photometric analyzer for continuous ammonium monitoring in process and environmental waters
