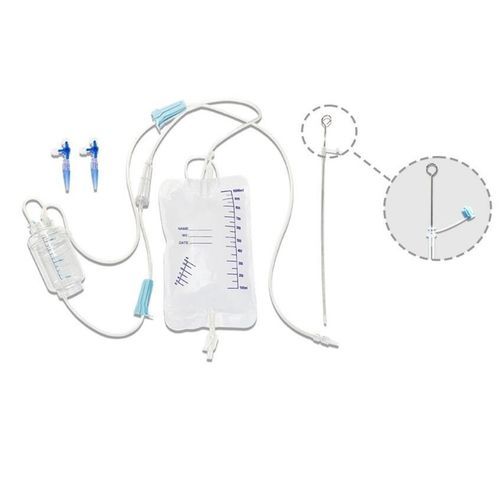

CSF drainage set

ventriculargraduatedsilicone

Product Overview
This External Ventricular Drain (EVD) system is intended for temporary cerebrospinal fluid (CSF) drainage and intracranial pressure (ICP) monitoring in neurosurgical procedures, hydrocephalus management, intracerebral hematoma/hemorrhage and traumatic brain injury. Available in classic and luxury configurations to suit clinical requirements.

Features & function

• Drainage tubes: Sizes F8, F10, F12, F14, F16. Made of medical-grade silicone; transparent with clear graduation for visual monitoring; high mechanical strength and biocompatible. Available with removable and non-removable connectors.
• Drainage bottle: Graduated scale enables accurate measurement of drainage volume and observation of pressure variations during drainage. Integrated air filter reduces siphoning and helps limit contamination risk.
• Bacterial filter port: Breathable yet impermeable design to minimise bacterial ingress while maintaining equalised pressure inside and outside the drainage system.
• Optional components: External ventricular drain catheter, trocar and adjustable pressure plate for secure positioning and controlled drainage.

Classic Type Accessories

• Drainage bottle
• Collection bag
• Flow observation window
• Flow regulator
• Connecting tube
• Hanging ring
• 3-way stopcock
• Silicone ventricular catheter

Luxury Type Accessories

• Drainage bottle
• Collection bag
• Flow observation window
• Flow regulator
• Connecting tube
• Hanging ring
• 3-way stopcock
• Silicone ventricular catheter
• Trocar
• Adjustable pressure plate with lanyard

Technical Specifications

• Product: External Ventricular Drain (EVD) system
• Available catheter sizes: F8, F10, F12, F14, F16
• Catheter material: Medical-grade silicone (transparent, high strength, biocompatible)
• Connector types: Removable and non-removable
• Drainage bottle: Graduated scale for volume measurement and pressure observation; integrated air filter to prevent siphoning and reduce contamination risk
• Bacterial filter port: Breathable and impermeable to prevent bacterial ingress
• Optional components: External ventricular drain catheter, trocar, adjustable pressure plate
• Typical accessories included: drainage bottle, collection bag, flow observation window, flow regulator, connecting tube, hanging ring, 3-way stopcock, silicone ventricular catheter (trocar and adjustable plate in luxury set)
