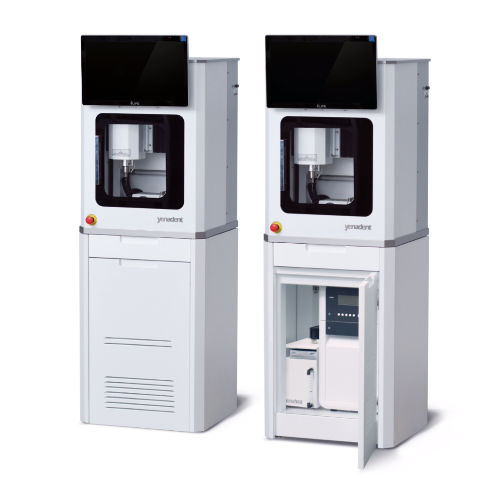

CAD/CAM milling machine D10dentalfor dental waxfor zirconia

CAD/CAM milling machine
CAD/CAM milling machine
CAD/CAM milling machine
CAD/CAM milling machine
CAD/CAM milling machine
CAD/CAM milling machine
CAD/CAM milling machine
Add to favorites
Compare this product
indicative price

Characteristics

Type
CAD/CAM
Applications
dental
Designed for
for dental wax, for zirconia, ceramic, for PMMA
Number of axes
5-axis
Other characteristics
benchtop

Description

Wide range of material options Wax / peek / soft metals / zirconium / pmma Ceramic is optional The machine got smaller, it's inside got bigger. With new interior design you can replace blanks, replace tools and clean the machine easier. Don't waste any material at any angle. We included a new vacuum and increased the maximum work angle with new half holder. Technical info 5 Axis Movements : 200 x 110 x 110 mm Control : High Speed YC Axis motors : Micro Stepper Spindle power : 0.5 kW Spindle RPM : 60.000 rpm Number of blocks : 1 Tool Change : 12 pockets Tool length switch : Standard Weight : 74 kg We included a new vacuum and increased the maximum work angle with new half holder. Technical info 5 Axis Movements : 200 x 110 x 110 mm Control : High Speed YC Axis motors : Micro Stepper Spindle power : 0.5 kW Spindle RPM : 60.000 rpm Number of blocks : 1 Tool Change : 12 pockets Tool length switch : Standard Weight : 74 kg Image Map Hardware Work area light 12 times tool changer Tool lenght switch IP67 Micro Stepper motors Precision guides and ball screws PC with touch screen Precision gear boxes Software Cam Software 5 axis (Requires optional PC) Sister tool Auto tool length check Email messages Batch Jobs
