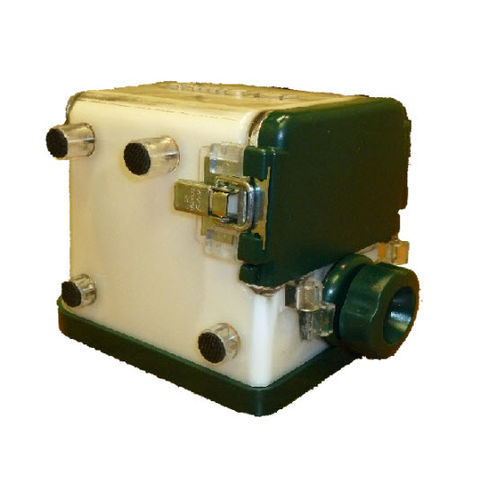

Prostate test phantom S-B-2.4

for ultrasound imaging

Side Fire Prostate Phantom Most Accurate Prostate Phantom & Surrounding Tissues Mimicking Device for Ultrasound Applications Yezitronix' radioactive seeds implantation Model S-B-2.4 Ultrasound Prostate Phantom is a multiple usage phantom developed for simulation and training for brachytherapy procedures. Its ingenious and versatile design makes the S-B-2.4 model a useful tool for simulation and training of different ultrasound rectal probes and surgical elements involved in prostate medical procedures. The prostate phantom construct mimics the exact 3D shape and size of: 40cc Prostate Urethra Seminal vesicle Ejaculatory duct Rectal wall Partial bladder Fat muscle tissues Perineal Tissue Numerous lesions located inside the prostate. All organs & tissues are correctly adjusted to mimic exact ultrasound echogenicity seen by surgeon during OR procedures. Suitable for: OEMs. medical devices simulation, robotic system calibration, hospitals, clinics, med schools training and demonstrations. All phantom tissues' mechanical properties are approximated to human tissues. All prostate phantom layers mimic the tissue behaviour (dynamics) when pierced. When for example a needle is piercing the Multi-Layer Prostate Phantom construct, it will generate a "Haptic Feedback (tactile)" to the user, simulating the real human tissue during biopsy or Brachytherapy procedure. Multi-layer material : each tissue or organ is independent and has its own characteristics defined by a real 3D shape, echogenicity level and mechanical properties. There are 4 embedded lesions in the prostate to help simulate biopsies or brachytherapies procedures.
