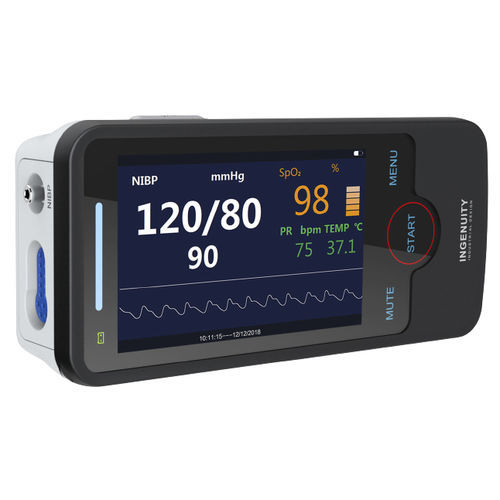

Portable vital signs monitor IE4

TEMPECGpulse rate

Quality Standards and Classification CE, ISO13485 SFDA: Class Ⅱb Anti-electroshock degree: ClassⅠequipment (internal power supply) TEMP/SpO 2 /NIBP: BF ECG/Resp: CF Display Resolution: 800*600 One alarm indicator(yellow/red) One working indicator(green) One battery charge state indicator(green) Three modes in accordance with the alarm state Environment Operating environment : Temperature: 0 ~ 40 ℃ Humidity: ≤85% Altitude: -500 ~ 4600m Transport and Storage environment : Temperature: -20 ~ 60 ℃ Humidity: ≤93% Altitude: -500 ~ 13100m Power Requirements AC: 100 ~ 240V, 50Hz/60Hz DC: Built-in rechargeable battery Battery: 4000mA 11.1V lithium battery 5min operating after low battery alarm Date Storage Trend diagram/table: 7x24h NIBP review: 400 events Wave review: 100min Alarm review: 100 alarm events Support drug concentration titration analysis ST Segment ST Segment Range: -2.0mV ~ +2.0mV Accuracy: 0.02mV
