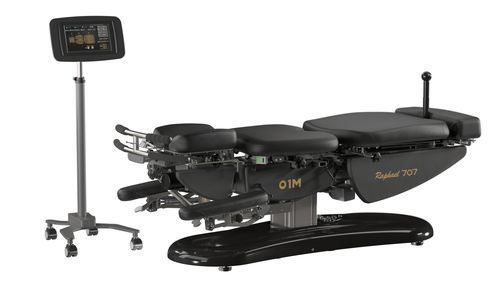

Electric chiropractic table Raphael 707-K

3-section

Overview
Raphael 707-K is a spinal therapy table designed for orthopedic and chiropractic treatment. It provides an integrated treatment environment that enables clinicians to develop and apply adjustment and therapeutic techniques. The platform combines Auto Drop, Auto Cox, decompression traction functions and a user-focused UI/UX to support reproducible clinical protocols.

Key Functions & Features

• Electric Drop (Electric Motor Drop System)
• Auto Cox
• Decompression traction functions (3D Decompression)
• Auto Axial Traction — 0~16 levels
• Auto Flexion — 0~22.4° (8 levels)
• 10" Touch Screen — ergonomic, user-friendly interface
• CE MDR compliance
• Scoliosis treatment capability

Electric Motor Drop System

• Patented technology
• Accurate, smooth and quiet drops
• Three drop positions: cervical, thoracic, lumbar

Auto Axial Traction

• 16-level automatic lumbar traction
• Customizable program settings
• Integrated patient support system

Auto Flexion

• Adjustable up to 22.4° in 8 levels
• Programmable flexion cycles
• Lateral flexion capability

Product Specifications

• Category — Spinal therapy table
• Width — 670 mm
• Weight — 135 kg
• Length — 1,760 mm ~ 2,280 mm
• Safe Load — 150 kg
• Up-Down Pitch — 590 ~ 890 mm
• Power — AC 220 V
• Key strengths — Auto Drop, Auto Traction, Auto Flexion
• Compliance — CE MDR

Technical specifications

• Auto Axial Traction: 0~16 levels (16-level automatic lumbar traction)
• Auto Flexion: 0~22.4° (adjustable in 8 levels, programmable, lateral flexion)
• Electric Motor Drop System: patented; three drops (Cervical / Thoracic / Lumbar); accurate, smooth, quiet
• Interface: 10" touch screen, ergonomic design
• Power: AC 220 V
• Dimensions and load: Width 670 mm; Length 1,760–2,280 mm; Weight 135 kg; Safe load 150 kg
