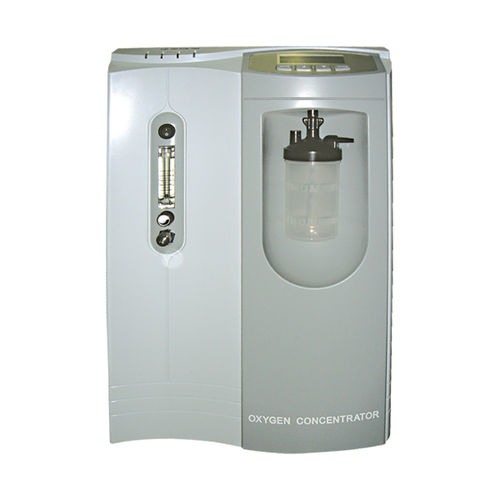

Medical oxygen concentrator HG5S

PSA

Product specification - Oxygen flow(L/min) : 0~5 - Oxygen concentration(%) : ≥90% - Oulet pressure(Mpa) : 0.05~0.08 - Sound level dB(A) : ≤50 - Nebulizing Volume(m1/min) : ≥0.5(Salternatively) - Size(mm) : 650(H)*400(W)*365(D) - Net weight(kg) : 30 - Power : AC220±10%, 50/60±1Hz;AC110±10%, 50/60±1Hz - Power consumption : ≤470W - Elctric classification : Class II Grade B - Alarm : Power failure alarm / Pressure alarm - Timing : With timer (Timer can record the accumulated operating time of the model) Features - PSA(Pressure Swing Adsorption) technology - Oxygen flowing volume is controll function - Suction system installation possibility - Alram function : Power, Pressure, cleaness condition - Dehumidify function - Timer : (a)Product of total operating time / (b)The present operating time / (c)30min,60min,90min,120min timer (Time excess at the time - machinery is stop )
