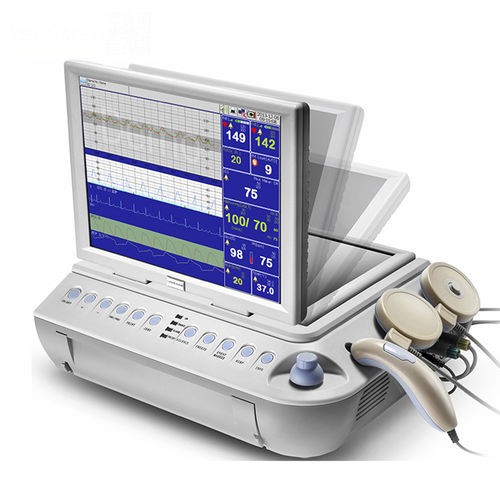

FHR fetal monitor YSFM200

twin FHRTOCOwith printer

Feature: • Foldable 12.1 inches TFT LCD high-brightness screen with a wide viewing angle and large numerics • 12 elements / 1 MHz water proof pulse Doppler transducer（option）for accurate detection • Event marker for easy documentation of events and kick counts • On-screen scrolling for viewing stored fetal traces • Twin ultrasound monitoring capability • Configurable audible and flashing fetal heart rate alarms • Twin signal overlap alarm function • Built-in high speed thermal printer, printing width can be set to 112mm,150mm • 24-hours memory for fetal traces • Supporting TCP/IP or wireless connection to the central monitoring station • Internal Li-ion battery power or AC power from external power supply • NST Report (Fetus Health Report) Physical Specifications Dimension 36cm(W)*23cm (D)*12cm (H) Weight 5.3kg（excluding accessories） Power requirements AC100-240V , 50/60Hz Power 100VA Temperature 0-40℃ Humidity 0-93% non-condensing
