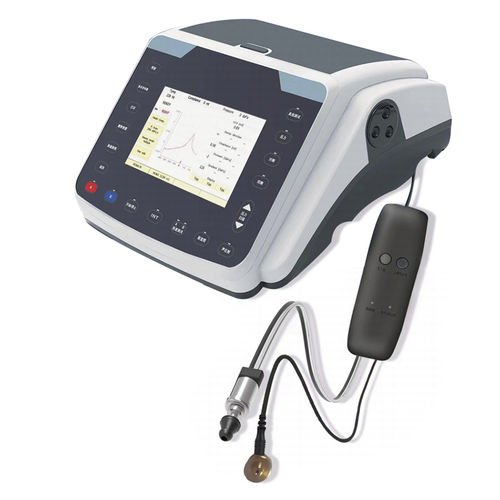

Tympanometer diagnostic station YSENT-DM20

touchscreen

Middle Ear Analyzer Superiority 1.Tympanogram test, Complete/perforated eustachian tube functional test 2.Sound reflection test, Acoustic reflection attenuation test, Acoustic refles latency test 3.Quick test: Two user-defined quick tests can be generated, with the test time ≤60s 4.With the "Live View" feature, you can see a panoramic view of the test in progress on your computer screen 5.Color touch screen+touch button with working mode Technical parameters Probe tone 226Hz(85dB SPL) 678Hz, 800Hz, 1000Hz(optional) Measuring range Tympanogram: 0.2cm3~5cm3 Tympanum compensation diagram:0cm3~2cm3 Total hamornical distortion Less-than 1%[226Hz(85dB SPL Stimulation level reach 110dB, no more than±5%(Probe type earphone) Auto test Quick test A, B(Tympanogram & Acoustic reflection sequence) Pressure range -600 to +400 daPa Pump pressure velocity Automatic range 15, 50, 100, 200, 300, 400, 600 daPa/s 200~600 daPa/sec Pump control Auto and manual Tympanogram Test mode: Acoustic admittance(Y), Acoustic susceptance(B), Acoustic conductance(G) Large pressure: -600~+400 daPa Eustachian tube Testing of intact tympanic membrane and Eustachian tube Testing of perforated tympanic membranes and Eustachian tubes Acoustic reflex Test mode: Fixed strength, Automatic threshold, Increasing strength, Manual Maximum permissible error: No more than ±1% Acoustic attenuation test Acoustic refles latency test(ARLT)
